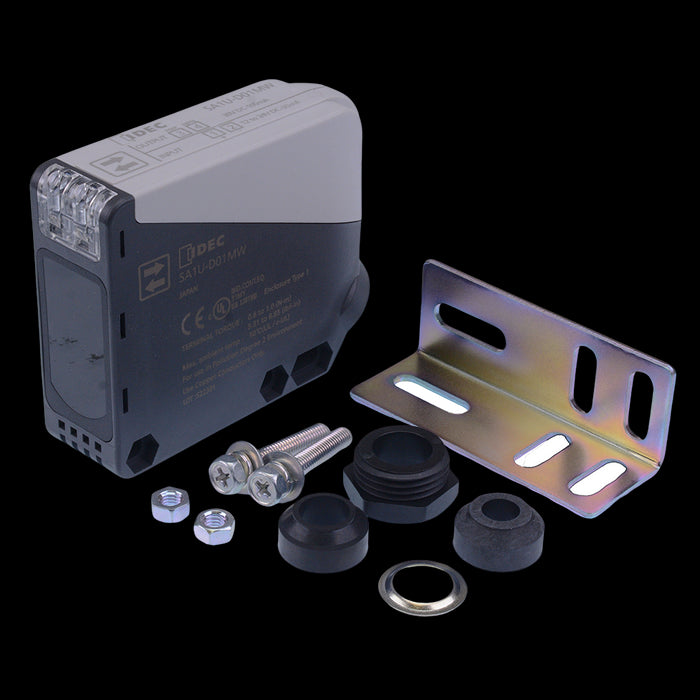

IDEC SA1U-D01MW Photoelectric Sensor Diffuse-Reflective Without Time Delay NPN / PNP
by IDEC
SKU 487115
MPN: SA1U-D01MW
Availability:
Only 2 left!
Original price
£88.89
-
Original price
£88.89
Original price
£88.89
Inc VAT
£88.89
-
£88.89
Current price
£88.89
Inc VAT
The SA1U-D01MW is a heavy duty photoelectric sensor switch featuring diffuse-reflective sensing, capable of sensing opaque and transparent objects up to a 1 meter distance. The sensor features NPN and PNP open collector dual outputs and interference prevention allowing two units to be mounted in close proximity.
Sensing method: diffuse-reflective Detectable object: opaque Screw terminals for easy wiring Sensing range: 1m maximum Response time: 1ms max Power voltage: 12 to 24V DC Control output: NPN and PNP open collector dual output Operation mode: light ON or dark ON Light emitting element: infrared LED 870nm Sensitivity adjustment: 1 turn control knob Time delay: without Current draw: 30mA max Protection level: IP67 Dimensions: 90 x 25 x 67.5mm (length x width x height)
Specification
Back order lead time | 10 Days |
Control output | NPN / PNP Open Collector |
Current draw | 30mA Max |
Depth | 90mm |
Detectable object | Opaque/Transparent |
Height | 67.5mm |
Light source element | Infrared LED 870nm |
Operating temperature | -25°C to +60°C |
Operation mode | Light ON/Dark ON |
Power voltage | 12 to 24VDC |
Protection level | IP67 |
Response time | 20ms Max |
Sensing method | Diffuse-Reflective |
Sensitivity adjustment | 1-Turn Control Knob |
Time delay function | Without |
Width | 25mm |
