IDEC RFID Reader 13.56MHz KW2D-R100Q4E

by IDEC
SKU 487098

MPN: KW2D-R1000Q4E

Availability:
Only 2 left!
Original price £347.78 - Original price £347.78
Original price
£347.78 Inc VAT
£347.78 - £347.78
Current price £347.78 Inc VAT

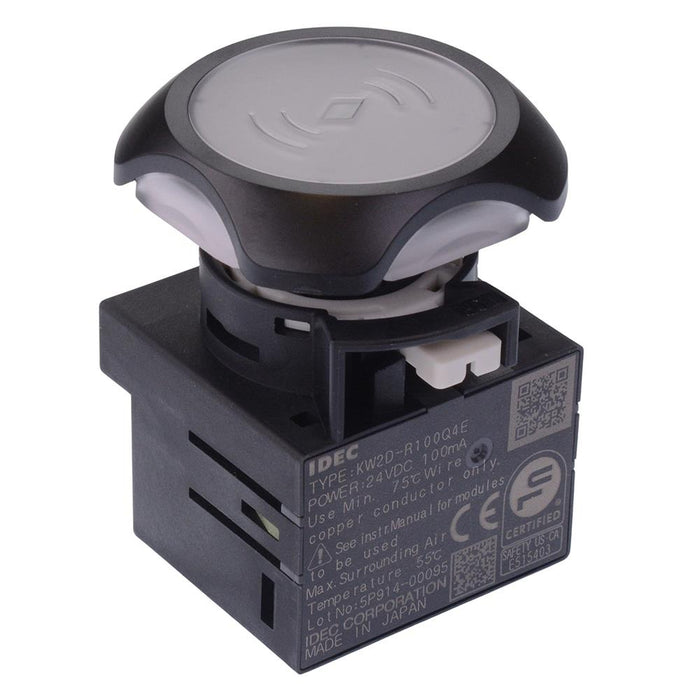

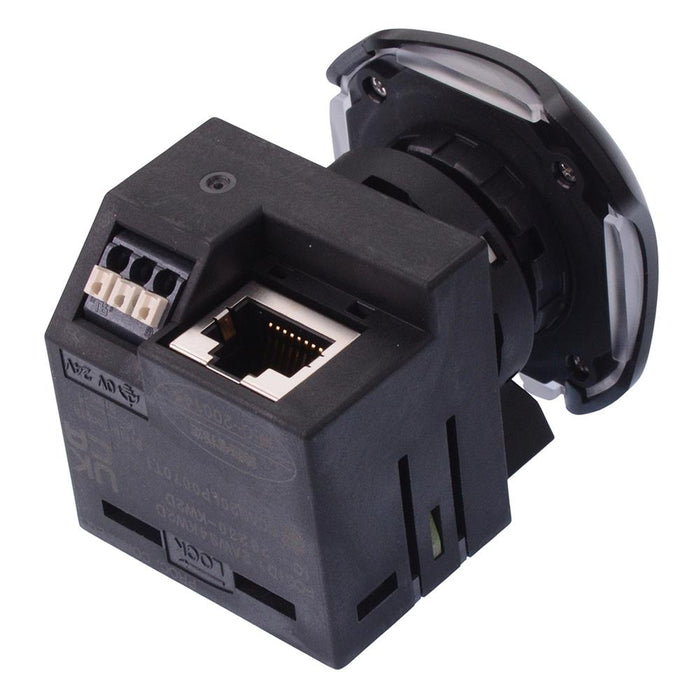

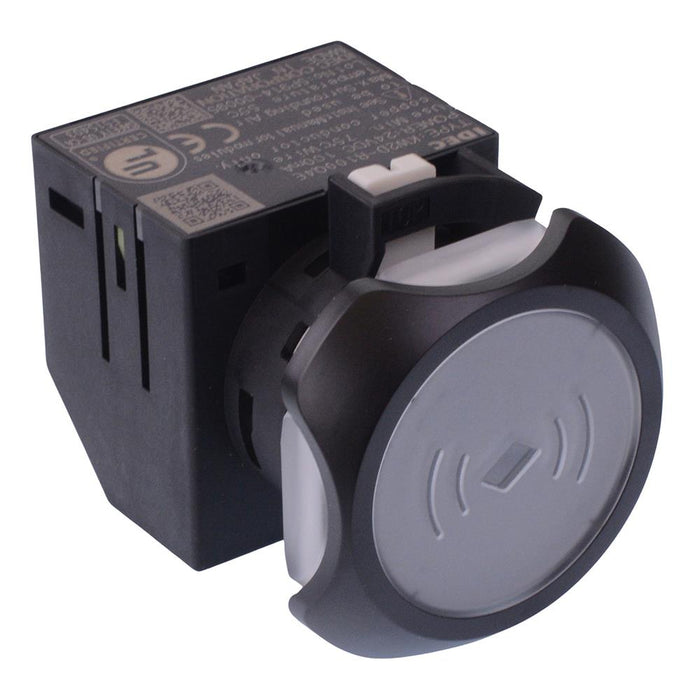

The KW2D-R1000Q4E is a smart RFID reader designed to manage authority for machines and equipment control. The reader is suitable for 22mm panel cut-outs and its compact smart design makes the reader ideal for a wide range of applications. The reader incorporates an LED and buzzer providing the user with audible and visible feedback on operation status. The reader can be used to restrict the use of machines and setting changes, manage access to control rooms and manage inspection history on production lines.

  • Fits 22.3mm panel cut-outs
  • Suitable for 0.8-4.0mm panel thickness
  • Audible and visible feedback on operation status
  • Communication interface: LAN
  • Power supply: 24V DC
  • Front unit dimensions: 43.6 x 43.6 x 9.0mm (length x width x height)
  • Rear unit dimensions: 40 x 40 x 48.5mm (length x width x depth)
  • Can be used with touch panels and PLCs for a wider range of applications
  • Specification
    Back order lead time 10 Days
    Communication Ethernet
    Frequency 13.56MHz
    Operating temperature -25 to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8 to 4.0mm
    Power consumption 2.4W Maximum (24VDC)
    Rated input voltage 24VDC
    Terminal type Push-In
    Voltage range 20.4 to 28.8VDC
    Withstand voltage 500VAC 1 Minute
