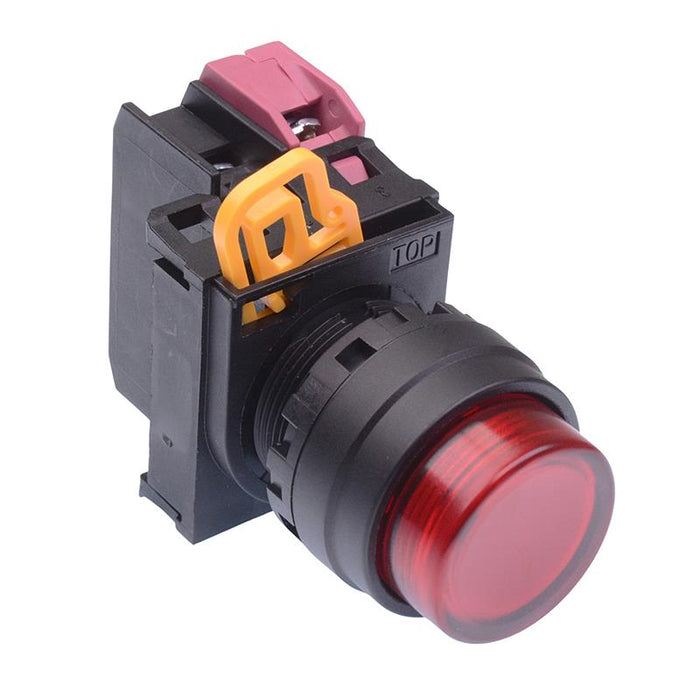

IDEC Red 24V illuminated 22mm Momentary Push Button Switch NC IP65 YW1L-M2E01Q4R
by IDEC
SKU 931580
MPN: YW1L-M2E01Q4R
Availability:
38 in stock
Original price
£15.83
-
Original price
£15.83
Original price
£15.83
Inc VAT
£15.83
-
£15.83
Current price
£15.83
Inc VAT
The YW1B-M2E01Q4R is an illuminated red momentary push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
NC contacts 24V illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Colour | Red |
Contact configuration | 1NC |
Contact rating | 2A 380V, 6A 240V |
Current rating | 10A |
Electrical life | 100,000 Cycles |
Head type | Extended |
Illuminated | Yes |
Illumination colour | Red |
Illumination voltage | 24V |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 22.3mm |
Panel thickness | 0.8-6mm |
Product series | YW |
Protection level | IP65 |
Rated thermal current | 10A |
Terminal type | Screw |
Voltage rating | 600V |
