YW4B-M4E20R Red 22mm Metal Bezel Mushroom Momentary Push Button Switch 2NO IP65 IDEC

by IDEC
SKU 932257

MPN: YW4B-M4E20R

Availability:
18 in stock
Original price £13.77 - Original price £13.77
Original price
£13.77
£13.77 - £13.77
Current price £13.77

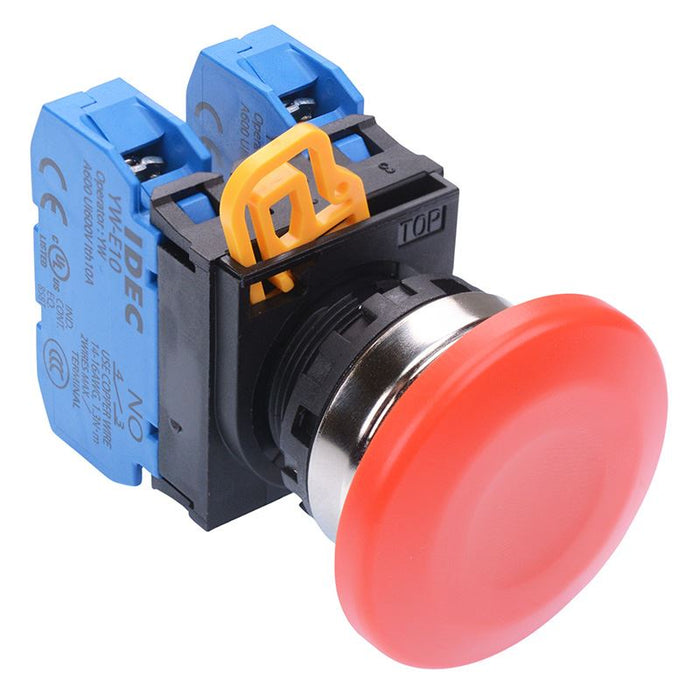

The YW4B-M4E20R is a red momentary push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

  • Metal Bezel
  • 2NO contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 40mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration 2NO
    Contact Rating 2A 380V, 6A 240V
    Current Rating 10A
    Electrical Life 100,000 Cycles
    Head Type Mushroom
    Illuminated No
    Illumination Colour Yellow
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -20°C to +55°C
    Panel Cut Out 22.3mm
    Panel Thickness 0.8-6mm
    Product Series YW
    Protection Level IP65
    Terminal Type Screw
    Voltage Rating 600V
