YW4B-M1E30R Red 22mm Metal Bezel Momentary Push Button Switch 3NO IP65 IDEC

by IDEC
SKU 932209

MPN: YW4B-M1E30R

Availability:
9 in stock
Original price £18.63 - Original price £18.63
Original price
£18.63
£18.63 - £18.63
Current price £18.63

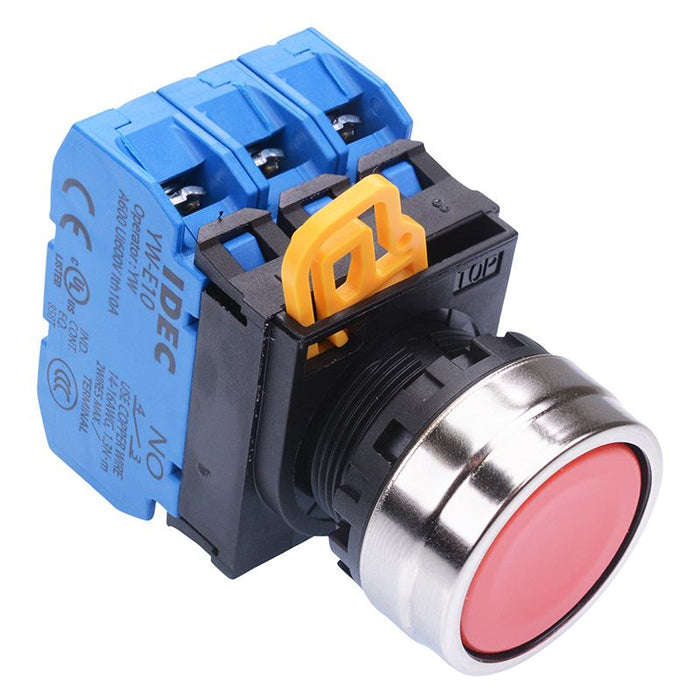

The YW4B-M1E30R is a red momentary push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

  • Metal Bezel
  • 3NO contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration 3NO
    Contact Rating 2A 380V, 6A 240V
    Current Rating 10A
    Electrical Life 100,000 Cycles
    Head Type Flush
    Illuminated No
    Illumination Colour Green
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -20°C to +55°C
    Panel Cut Out 22.3mm
    Panel Thickness 0.8-6mm
    Product Series YW
    Protection Level IP65
    Terminal Type Screw
    Voltage Rating 600V
