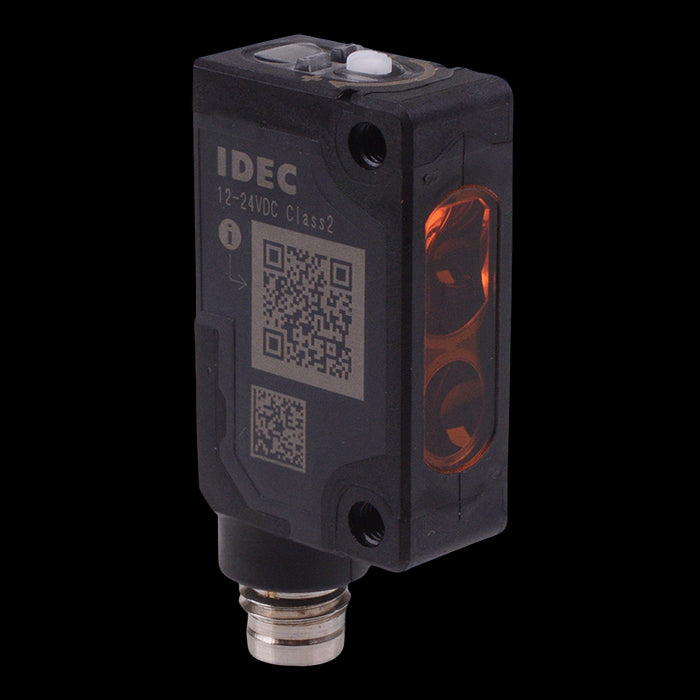

IDEC Mini Photoelectric Sensor Diffuse Reflective Red LED PNP SA2E-DP3MC

by IDEC
SKU 487112

MPN: SA2E-DP3MC

Availability:
Only 2 left!
Original price £124.03 - Original price £124.03
Original price
£124.03 Inc VAT
£124.03 - £124.03
Current price £124.03 Inc VAT
The SA2E-DP3MC is a miniature high performance photoelectric sensor featuring diffuse reflective sensing and enhanced detection accuracy. The sensor features a 0.5ms response time, allowing continuous detection of small objects at high speeds. The sensor has a range up to 500mm, common applications include restroom sinks to detect the proximity of hands.

  • Sensing range: 500mm
  • Power voltage: 12-24VDC (operating range: 10-30VDC)
  • Light source element: red LED
  • Detectable object: opaque/transparent
  • Response time: 0.5ms
  • Sensitivity adjustment: single turn control
  • Operation mode: light ON / dark ON
  • Control output: PNP open collector
  • Current draw: 20mA maximum
  • Protection level: IP67
  • Connection method: M8 4 pin connector
  • Operating temperature: -30 to +55°C
  • Dimensions: 10.8 x 19.5 x 31.5mm (width x depth x height)
  • Specification
    Back order lead time 10 Days
    Connection M8 Connector (4-pin)
    Control output PNP
    Current draw 20mA Max
    Depth 19.5mm
    Detectable object Opaque/Transparent
    Height 31.5mm
    Light source element Red LED
    Operating temperature -30°C to +55°C
    Operation mode Light ON/Dark ON
    Power voltage 12 to 24VDC
    Protection level IP67
    Response time 0.5ms
    Sensing method Diffuse-Reflective
    Sensitivity adjustment Single-Turn Control
    Time delay function Without
    Width 10.8mm
