LD6A-0DZQB LD6A Stack Light Base with Sounder & Flasher Direct Mount 24VAC/DC IDEC
by IDEC
SKU 485741
MPN: LD6A-0DZQB
Availability:
6 in stock
Original price
£93.09
-
Original price
£93.09
Original price
£93.09
£93.09
-
£93.09
Current price
£93.09

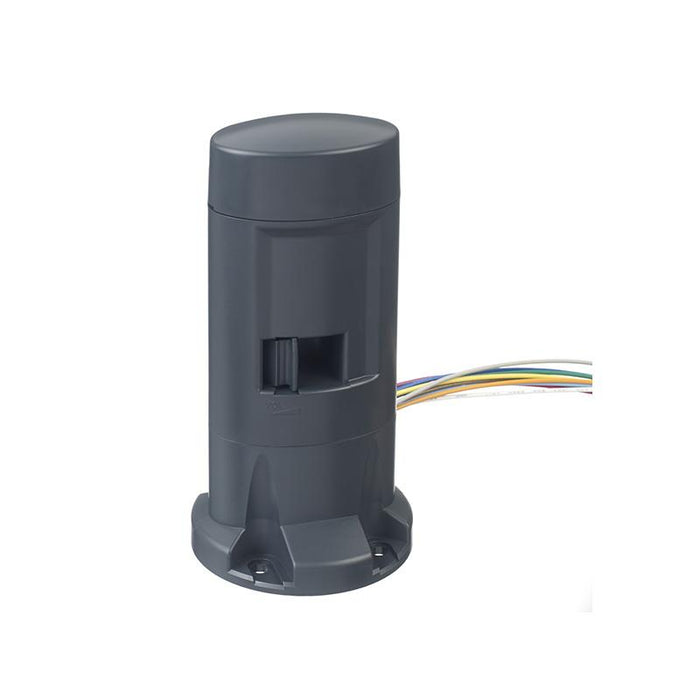

The LD6A-0DZQB is a direct mount base with a steady / flashing light effect and alarm, for use with the LD6A LED SignaLight towers.
The LD6A SignaLight combines the latest LED technology with IDEC's safety technology. Provides a new concept and innovative design, ideal for factory automation and various other applications. The striped design makes the SignaLight highly visible and is available as direct, frame, pole or wall mount.
When ordering as sub-components a base module, LED modules and center set screw is required to make a complete unit.
The LD6A SignaLight combines the latest LED technology with IDEC's safety technology. Provides a new concept and innovative design, ideal for factory automation and various other applications. The striped design makes the SignaLight highly visible and is available as direct, frame, pole or wall mount.
When ordering as sub-components a base module, LED modules and center set screw is required to make a complete unit.
Specification
| Back Order Lead Time | 10 Days |
| Bulb Type | LED |
| Connection Type | Screw |
| Current Consumption | 20mA |
| Decibel Level | 70-90dB at 1 metre |
| Flashing Rate | 1.75Hz |
| Lens Shape | Oval |
| Life Expectancy | 30,000 Hours |
| Light Effect | Flashing, Steady |
| Mounting Type | Direct Mount |
| Number of Tiers | 3 |
| Operating Temperature | -25°C to +55°C |
| Product Series | LD6A |
| Protection Level | IP54 |
| Supply Voltage | 24V AC/DC |
| Wire Length | 960mm |
