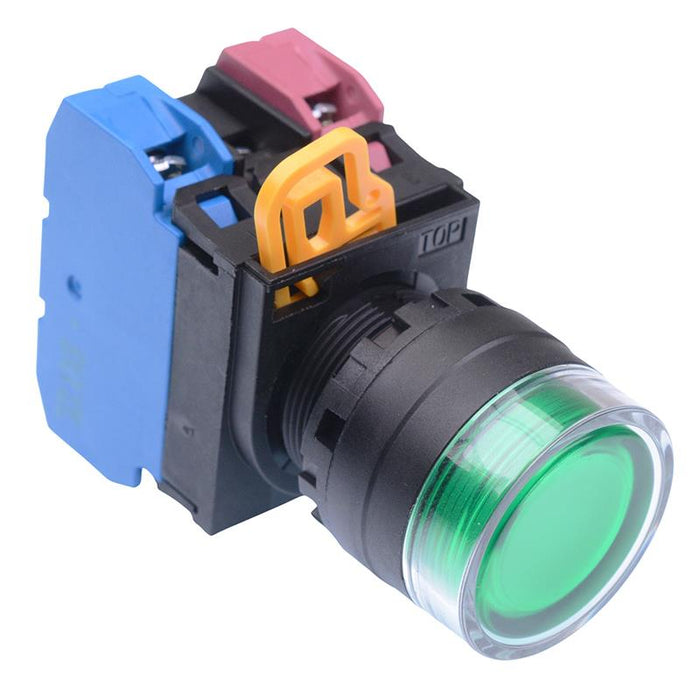

IDEC Green 24V illuminated 22mm Momentary Shrouded Push Button Switch 1NO-1NC IP65 YW1L-MF2E11Q4G
by IDEC
SKU 931681
MPN: YW1L-MF2E11Q4G
Availability:
17 in stock
Original price
£19.68
-
Original price
£19.68
Original price
£19.68
Inc VAT
£19.68
-
£19.68
Current price
£19.68
Inc VAT
The YW1B-MF2E11Q4G is an illuminated green momentary shrouded push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
1NO-1NC contacts 24V illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Colour | Green |
Contact configuration | 1NO-1NC |
Contact rating | 2A 380V, 6A 240V |
Current rating | 10A |
Electrical life | 100,000 Cycles |
Head type | Extended with Shroud |
Illuminated | Yes |
Illumination colour | Green |
Illumination voltage | 24V |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 22.3mm |
Panel thickness | 0.8-6mm |
Product series | YW |
Protection level | IP65 |
Rated thermal current | 10A |
Terminal type | Screw |
Voltage rating | 600V |
