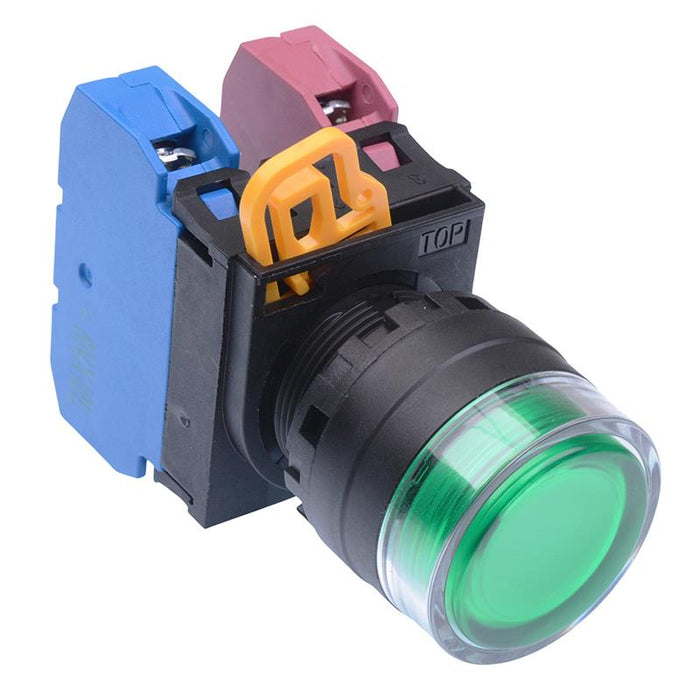

IDEC Green 22mm Momentary Shrouded Push Button Switch 1NO-1NC IP65 YW1L-MF2E11Q0G

by IDEC
SKU 931635

MPN: YW1L-MF2E11Q0G

Availability:
28 in stock
Original price £13.33 - Original price £13.33
Original price
£13.33 Inc VAT
£13.33 - £13.33
Current price £13.33 Inc VAT
The YW1B-MF2E11Q0G is a green momentary shrouded push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 1NO-1NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Green
    Contact configuration 1NO-1NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Extended with Shroud
    Illuminated No
    Illumination colour Green
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
