YW1L-A4E02Q3G Green 12V illuminated 22mm Mushroom Maintained Push Button Switch 2NC IP65 IDEC
by IDEC
SKU 931807
MPN: YW1L-A4E02Q3G
Availability:
Out of stock
Sold out
Original price
£0
Original price
£22.18
-
Original price
£22.18
Original price
Current price
£22.18(inc. VAT)
£22.18
-
£22.18
Current price
£22.18
Quantity Discounts
Buy 5 - 9 | Get 11% off | £19.74(inc. VAT) each |
Buy 10 - 24 | Get 17% off | £18.41(inc. VAT) each |
Buy 25 - 49 | Get 22% off | £17.30(inc. VAT) each |
Buy 50+ | Get 26% off | £16.41(inc. VAT) each |

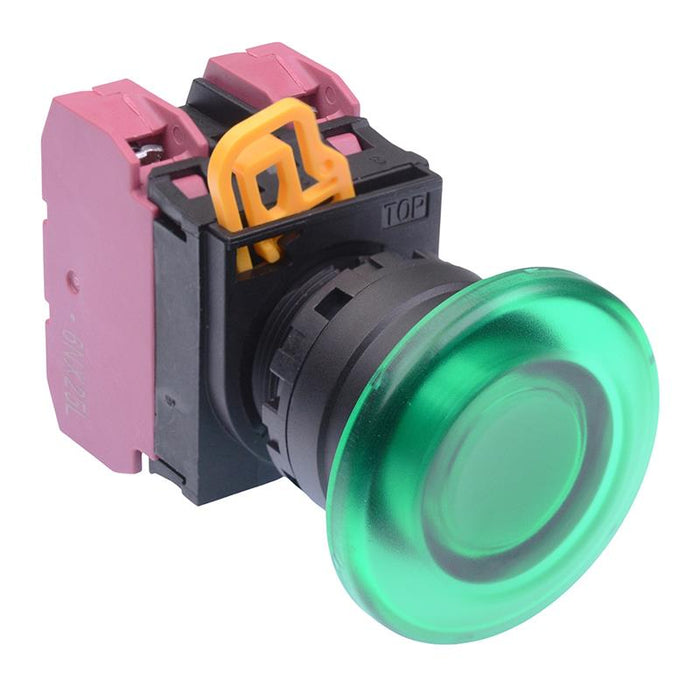

The YW1B-A4E02Q3G is an illuminated green maintained push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NC contacts 12V LED illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 40mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Maintained |
Back Order Lead Time | 10 Days |
Colour | Green |
Contact Configuration | 2NC |
Contact Rating | 2A 380V, 6A 240V |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
Head Type | Mushroom |
Illuminated | Yes |
Illumination Colour | Amber |
Illumination Voltage | 12V |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 22.3mm |
Panel Thickness | 0.8-6mm |
Product Series | YW |
Protection Level | IP65 |
Rated Thermal Current | 10A |
Terminal Type | Screw |
Voltage Rating | 600V |
