![IDEC Green 12V illuminated 22mm Metal Bezel Momentary Push Button Switch NO IP65 YW4L-M2E10Q3G](http://pro.maplin.co.uk/cdn/shop/files/a55de7f0-68d9-49bb-ae2c-6d5f7126f75e_700x700.jpg?v=1687380231)

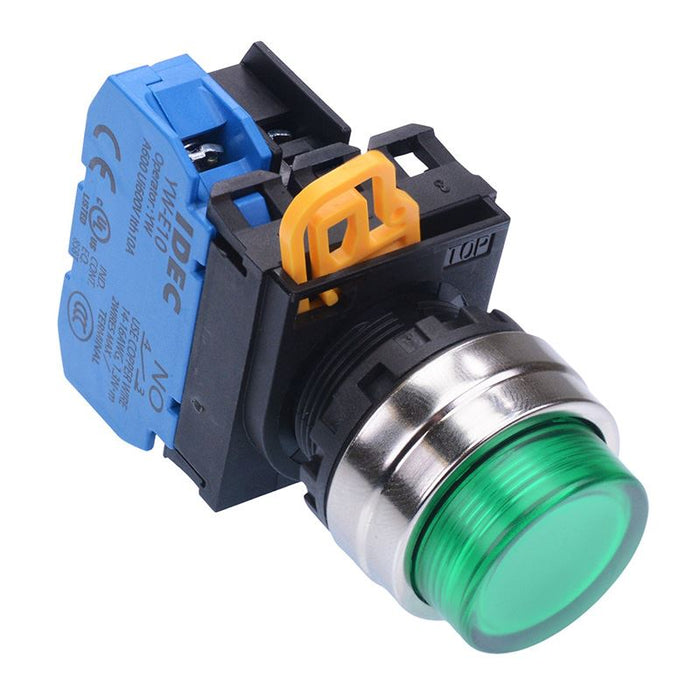

IDEC Green 12V illuminated 22mm Metal Bezel Momentary Push Button Switch NO IP65 YW4L-M2E10Q3G
by IDEC
SKU 932322
MPN: YW4L-M2E10Q3G
Availability:
Only 1 left!
Original price
£19.17
-
Original price
£19.17
Original price
£19.17
Inc VAT
£19.17
-
£19.17
Current price
£19.17
Inc VAT
The YW4B-M2E10Q3G is an illuminated green momentary push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel NO contacts 12V illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Colour | Green |
Contact configuration | 1NO |
Contact rating | 2A 380V, 6A 240V |
Current rating | 10A |
Electrical life | 100,000 Cycles |
Head type | Extended |
Illuminated | Yes |
Illumination colour | Green |
Illumination voltage | 12V |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 22.3mm |
Panel thickness | 0.8-6mm |
Product series | YW |
Protection level | IP65 |
Terminal type | Screw |
Voltage rating | 600V |
