CW4L-A1E11Q4PW White 24V illuminated Maintained Push Button Switch 1NO-1NC IP65 IDEC
by IDEC
SKU 933916
MPN: CW4L-A1E11Q4PW
Availability:
8 in stock
Original price
£41.98
-
Original price
£41.98
Original price
£41.98
Inc VAT
£41.98
-
£41.98
Current price
£41.98
Inc VAT

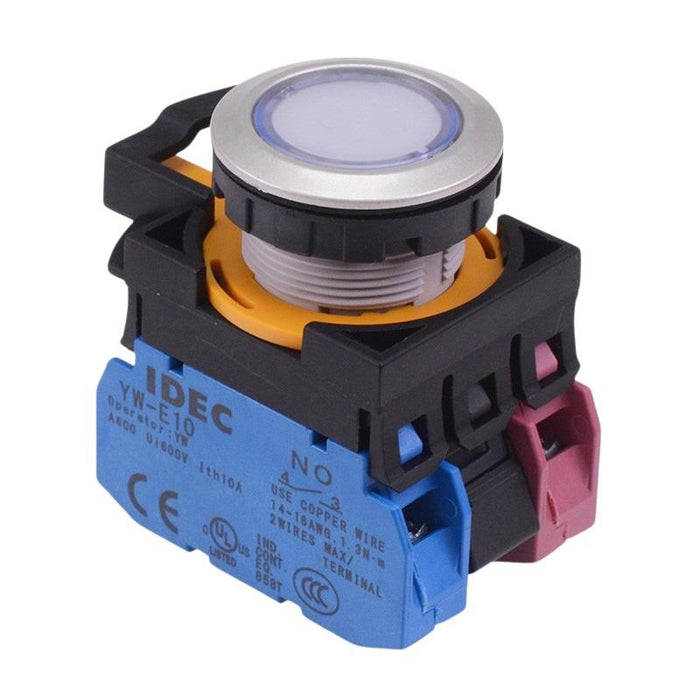

The CW4L-A1E11Q4PW is a flush mount industrial push button switch featuring a sleek and compact metallic design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The metallic design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek metallic design makes the switch perfect for use with industrial machines and control panels.
White button 24V LED illumination 1NO-1NC contacts Screw contact blocks Maintained operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
| Actuation | Maintained |
| Back order lead time | 10 Days |
| Colour | White |
| Contact configuration | 1NO-1NC |
| Contact rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
| Current rating | 10A |
| Head type | Flush |
| Illuminated | Yes |
| Illumination colour | White |
| Illumination voltage | 24V |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 22.3mm |
| Product series | CW |
| Protection level | IP65 |
| Rated thermal current | 10A |
| Terminal type | Screw |
| Voltage rating | 300V |
