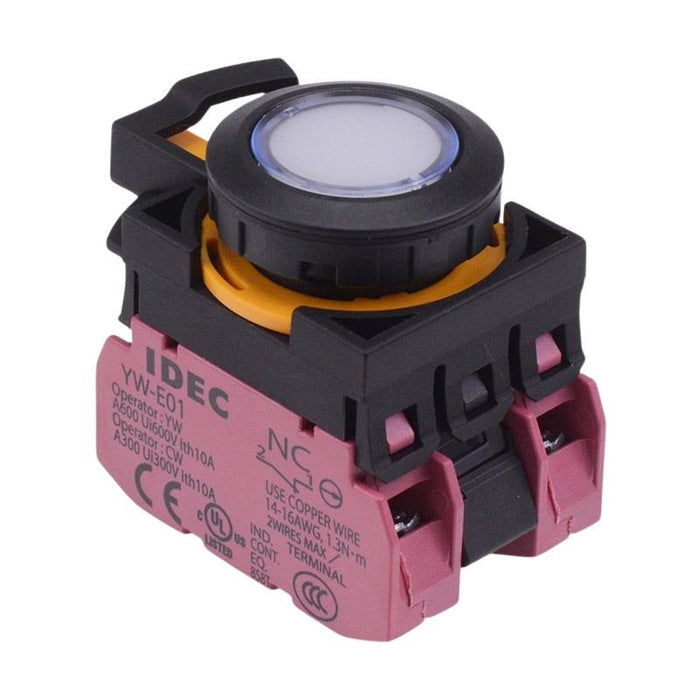

CW1L-M1E02Q3PW White 12V illuminated Momentary Push Button Switch 2NC IP65 IDEC

by IDEC
SKU 933663

MPN: CW1L-M1E02Q3PW

Availability:
12 in stock
Original price £28.47 - Original price £28.47
Original price
£28.47
£28.47 - £28.47
Current price £28.47
The CW1L-M1E02Q3PW is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • White button
  • 12V LED illumination
  • 2NC contacts
  • Screw contact blocks
  • Momentary operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour White
    Contact Configuration 2NC
    Contact Rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current Rating 10A
    Head Type Flush
    Illuminated Yes
    Illumination Colour White
    Illumination Voltage 12V
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +55°C
    Panel Cut Out 22.3mm
    Product Series CW
    Protection Level IP65
    Rated Thermal Current 10A
    Terminal Type Screw
    Voltage Rating 300V
