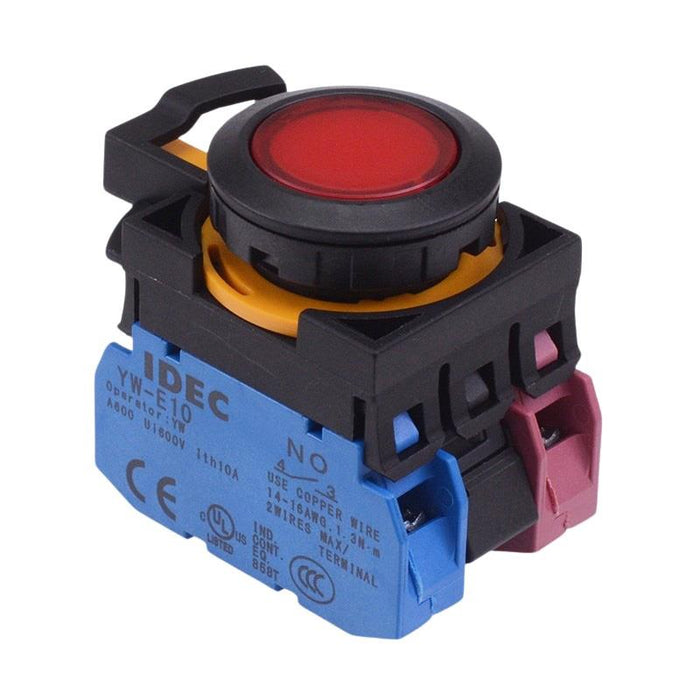

CW1L-M1E11Q3R Red 12V illuminated Momentary Push Button Switch 1NO-1NC IP65 IDEC
by IDEC
SKU 933682
MPN: CW1L-M1E11Q3R
Availability:
12 in stock
Original price
£29.46
-
Original price
£29.46
Original price
£29.46
£29.46
-
£29.46
Current price
£29.46
The CW1L-M1E11Q3R is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
Red button 12V LED illumination 1NO-1NC contacts Screw contact blocks Momentary operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
| Current Rating | 10A |
| Head Type | Flush |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12V |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22.3mm |
| Product Series | CW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 300V |
