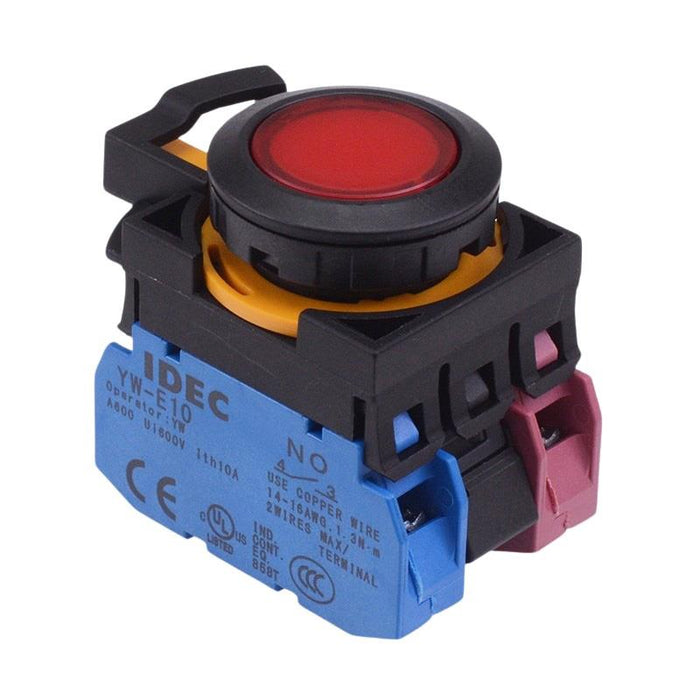

CW1L-A1E11Q3R Red 12V illuminated Maintained Push Button Switch 1NO-1NC IP65 IDEC
by IDEC
SKU 933718
MPN: CW1L-A1E11Q3R
Availability:
12 in stock
Original price
£38.55
-
Original price
£38.55
Original price
£38.55
Inc VAT
£38.55
-
£38.55
Current price
£38.55
Inc VAT
The CW1L-A1E11Q3R is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
Red button 12V LED illumination 1NO-1NC contacts Screw contact blocks Maintained operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
Actuation | Maintained |
Back order lead time | 10 Days |
Colour | Red |
Contact configuration | 1NO-1NC |
Contact rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
Current rating | 10A |
Head type | Flush |
Illuminated | Yes |
Illumination colour | Red |
Illumination voltage | 12V |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -25°C to +55°C |
Panel cut out | 22.3mm |
Product series | CW |
Protection level | IP65 |
Rated thermal current | 10A |
Terminal type | Screw |
Voltage rating | 300V |
