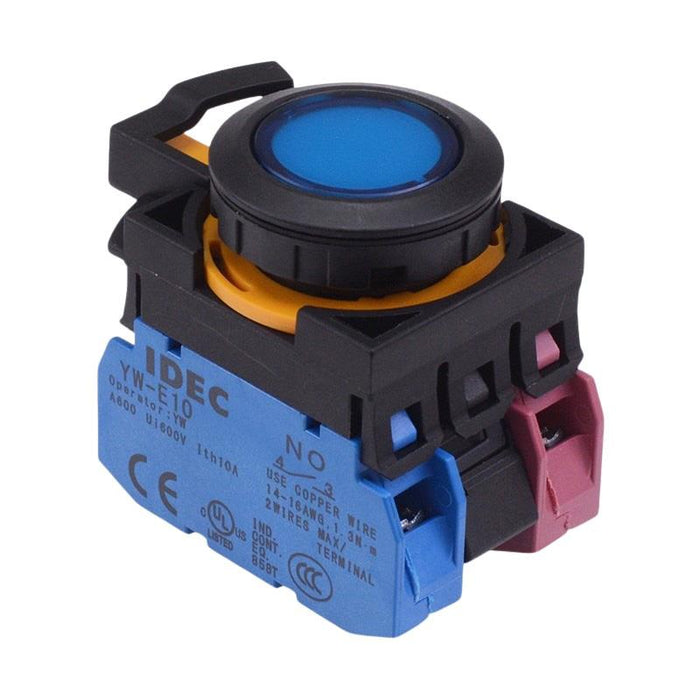

IDEC CW Series Blue 24V illuminated Momentary Flush Push Button Switch 1NO-1NC IP65

by IDEC
SKU 933760

MPN: CW1L-M1E11Q4S

Availability:
Only 4 left!
Original price £27.01 - Original price £27.01
Original price
£27.01 Inc VAT
£27.01 - £27.01
Current price £27.01 Inc VAT
The CW1L-M1E11Q4S is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • Blue Button
  • 24V LED illumination
  • 1NO-1NC contacts
  • Screw contact blocks
  • Momentary operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Blue
    Contact configuration 1NO-1NC
    Contact rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current rating 10A
    Head type Flush
    Illuminated Yes
    Illumination colour Blue
    Illumination voltage 24V
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +55°C
    Panel cut out 22.3mm
    Product series CW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 300V
