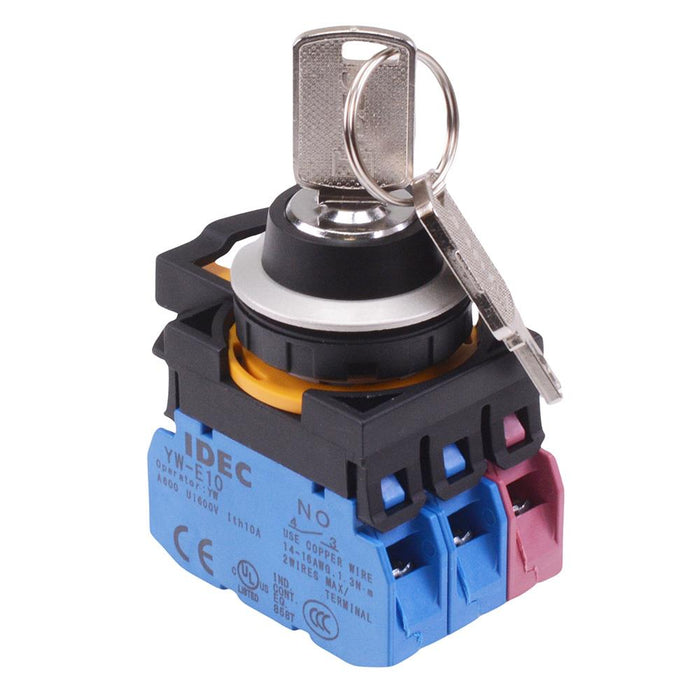

CW4K-2AE21 2 Position Metallic Maintained Key Switch2NO-1NC IP65 IDEC
by IDEC
SKU 934248
MPN: CW4K-2AE21
Availability:
7 in stock
Original price
£58.16
-
Original price
£58.16
Original price
£58.16
£58.16
-
£58.16
Current price
£58.16
The CW4K-2AE21 is an industrial key switch featuring a metallic sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
2 positions 2NO-1NC contacts Screw contact blocks Maintained operation Key is removable in all positions 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 2NO-1NC |
| Contact Rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
| Current Rating | 10A |
| Head Type | Key |
| Illuminated | No |
| Key Index Angle | 90° |
| Key Withdrawal Position | 1 & 2 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +60°C |
| Panel Cut Out | 22.3mm |
| Product Series | CW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 300V |
