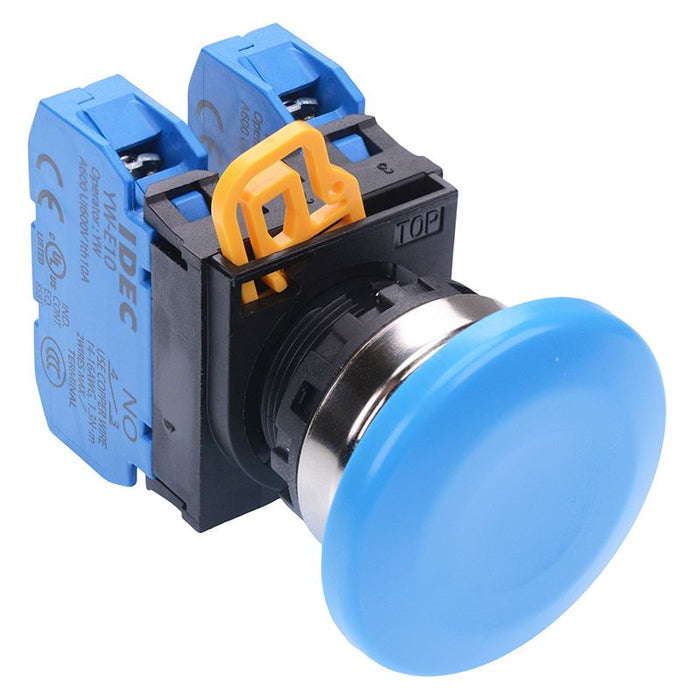

IDEC Blue 22mm Metal Bezel Mushroom Momentary Push Button Switch 2NO IP65 YW4B-M4E20S
by IDEC
SKU 932258
MPN: YW4B-M4E20S
Availability:
23 in stock
Original price
£13.77
-
Original price
£13.77
Original price
£13.77
Inc VAT
£13.77
-
£13.77
Current price
£13.77
Inc VAT
The YW4B-M4E20S is a blue momentary push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 2NO contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 40mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Blue |
| Contact configuration | 2NO |
| Contact rating | 2A 380V, 6A 240V |
| Current rating | 10A |
| Electrical life | 100,000 Cycles |
| Head type | Mushroom |
| Illuminated | No |
| Illumination colour | Amber |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22.3mm |
| Panel thickness | 0.8-6mm |
| Product series | YW |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 600V |
