IDEC Black 22mm Metal Bezel Momentary Push Button Switch NC IP65 YW4B-M1E01B
by IDEC
SKU 932183
MPN: YW4B-M1E01B
Availability:
16 in stock
Original price
£12.08
-
Original price
£12.08
Original price
£12.08
Inc VAT
£12.08
-
£12.08
Current price
£12.08
Inc VAT

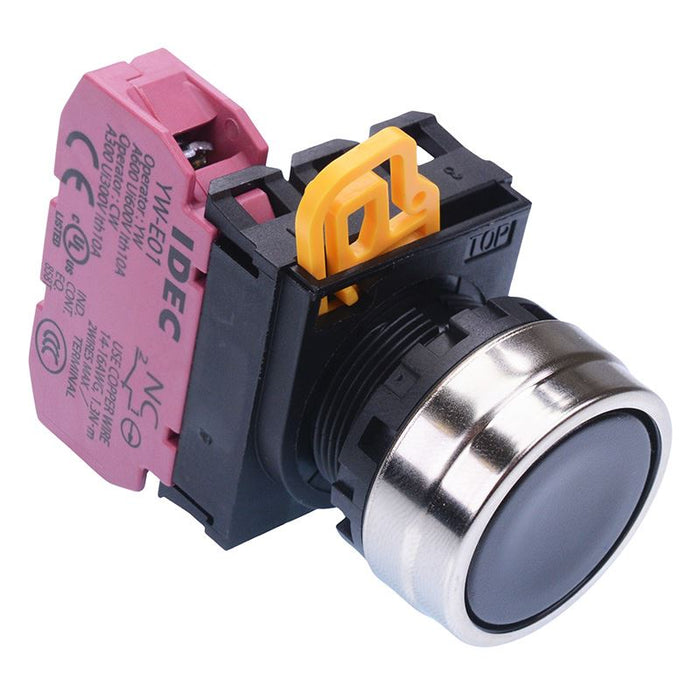

The YW4B-M1E01B is a black momentary push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Colour | Black |
Contact configuration | 1NC |
Contact rating | 2A 380V, 6A 240V |
Current rating | 10A |
Electrical life | 100,000 Cycles |
Head type | Flush |
Illuminated | No |
Illumination colour | Amber |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 22.3mm |
Panel thickness | 0.8-6mm |
Product series | YW |
Protection level | IP65 |
Terminal type | Screw |
Voltage rating | 600V |
