IDEC Black 22mm Metal Bezel Maintained Push Button Switch 3NC IP65 YW4B-A1E03B
by IDEC
SKU 932216
MPN: YW4B-A1E03B
Availability:
Out of stock
Sold out
Original price
£18.63
-
Original price
£18.63
Original price
£18.63
Inc VAT
£18.63
-
£18.63
Current price
£18.63
Inc VAT

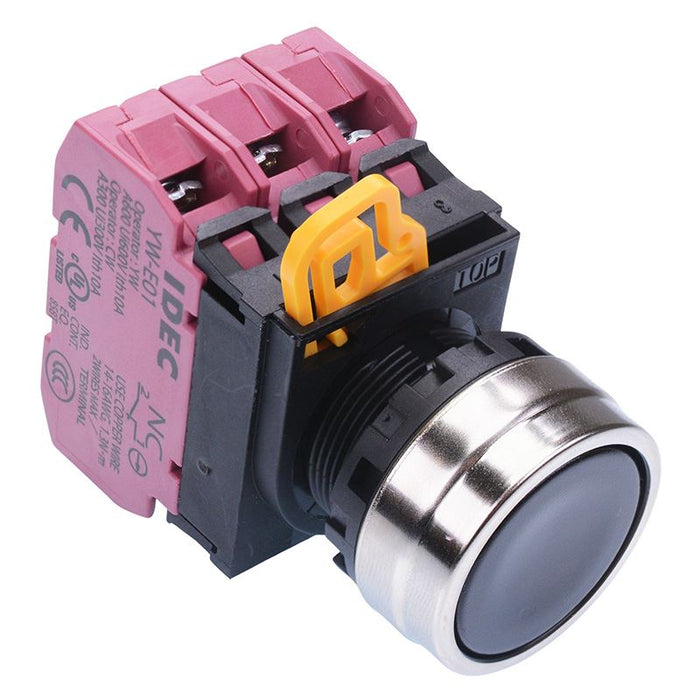

The YW4B-A1E03B is a black maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 3NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back order lead time | 10 Days |
| Colour | Black |
| Contact configuration | 3NC |
| Contact rating | 2A 380V, 6A 240V |
| Current rating | 10A |
| Electrical life | 100,000 Cycles |
| Head type | Flush |
| Illuminated | No |
| Illumination colour | Blue |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22.3mm |
| Panel thickness | 0.8-6mm |
| Product series | YW |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 600V |
