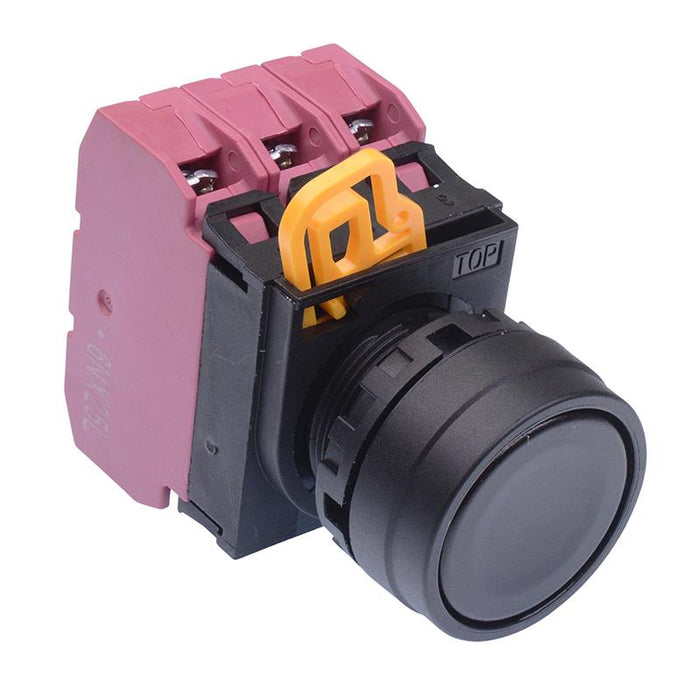

IDEC Black 22mm Maintained Push Button Switch 3NC IP65 YW1B-A1E03B

by IDEC
SKU 931453

MPN: YW1B-A1E03B

Availability:
50 in stock
Original price £14.44 - Original price £14.44
Original price
£14.44 Inc VAT
£14.44 - £14.44
Current price £14.44 Inc VAT
The YW1B-A1E03B is a black maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 3NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Colour Black
    Contact configuration 3NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Flush
    Illuminated No
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
