IDEC Amber 24V illuminated 22mm Mushroom Momentary Push Button Switch 2NC IP65 YW1L-M4E02Q4A

by IDEC
SKU 931832

MPN: YW1L-M4E02Q4A

Availability:
Out of stock
Sold out
Original price £18.80 - Original price £18.80
Original price
£18.80 Inc VAT
£18.80 - £18.80
Current price £18.80 Inc VAT

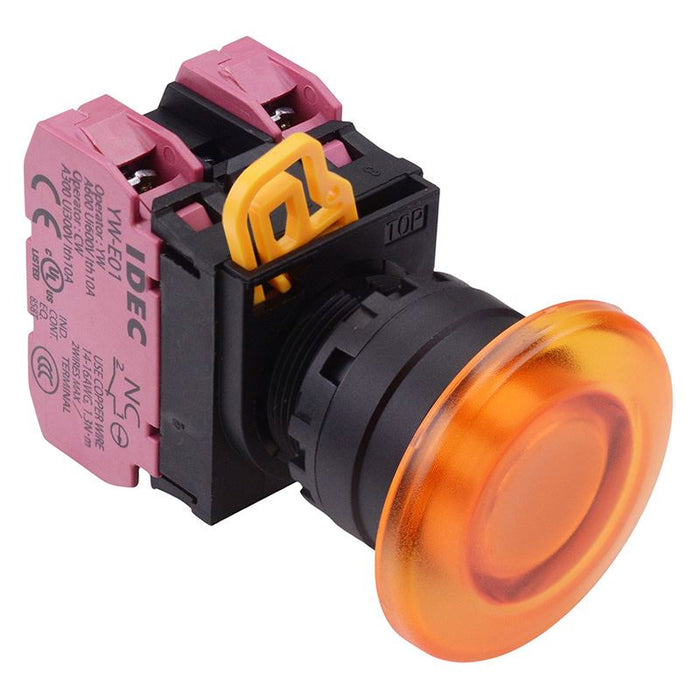

The YW1B-M4E02Q4A is an illuminated amber momentary push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 2NC contacts
  • 24V LED illumination
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 40mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Amber
    Contact configuration 2NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Mushroom
    Illuminated Yes
    Illumination colour Amber
    Illumination voltage 24V
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
