YW4L-AF2E02Q0A Amber 22mm Metal Bezel Maintained Shrouded Push Button Switch 2NC IP65 IDEC
by IDEC
SKU 932405
MPN: YW4L-AF2E02Q0A
Availability:
15 in stock
Original price
£0
Original price
£17.77
-
Original price
£17.77
Original price
Current price
£17.77(inc. VAT)
£17.77
-
£17.77
Current price
£17.77

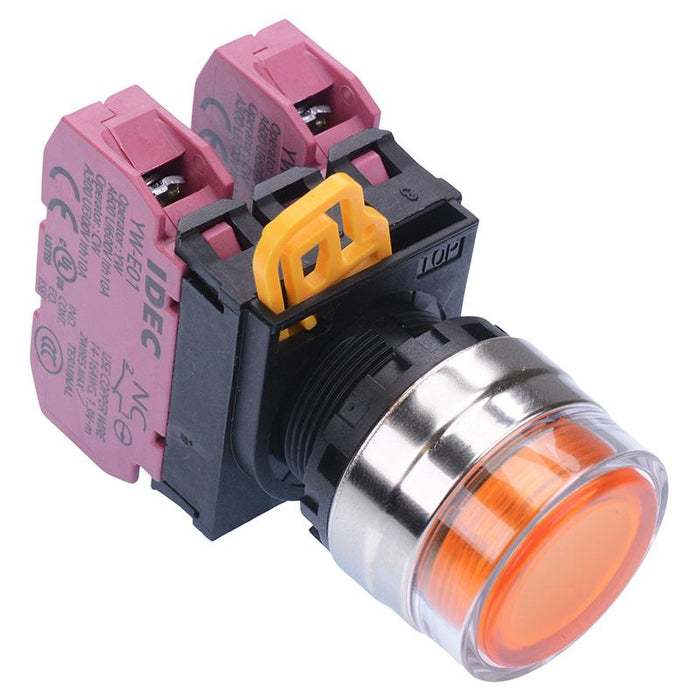

The YW4B-AF2E02Q0A is a amber maintained shrouded push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 2NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Maintained |
Back Order Lead Time | 10 Days |
Colour | Amber |
Contact Configuration | 2NC |
Contact Rating | 2A 380V, 6A 240V |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
Head Type | Extended with Shroud |
Illuminated | No |
Illumination Colour | Blue |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 22.3mm |
Panel Thickness | 0.8-6mm |
Product Series | YW |
Protection Level | IP65 |
Terminal Type | Screw |
Voltage Rating | 600V |
