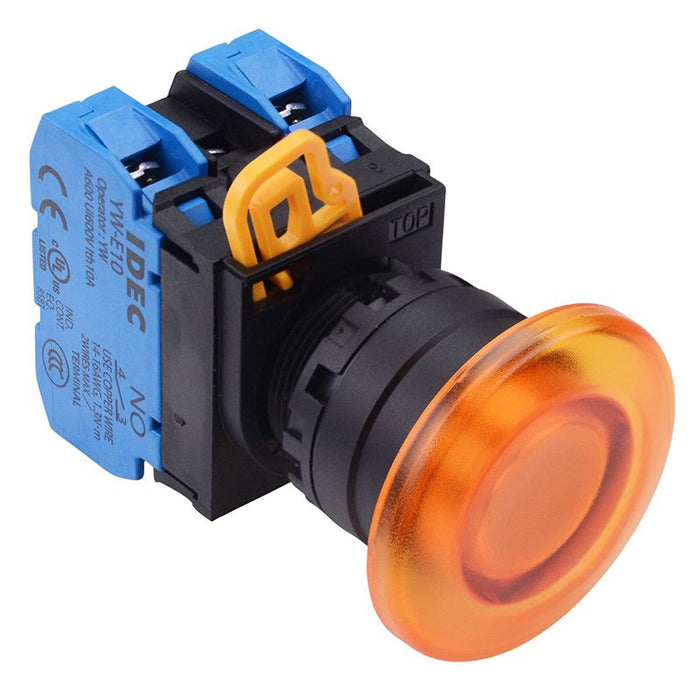

YW1L-M4E20Q3A Amber 12V illuminated 22mm Mushroom Momentary Push Button Switch 2NO IP65 IDEC
by IDEC
SKU 931776
MPN: YW1L-M4E20Q3A
Availability:
14 in stock
Original price
£20.53
-
Original price
£20.53
Original price
£20.53
£20.53
-
£20.53
Current price
£20.53
The YW1B-M4E20Q3A is an illuminated amber momentary push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NO contacts 12V LED illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 40mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Amber |
| Contact Configuration | 2NO |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | Yes |
| Illumination Colour | Amber |
| Illumination Voltage | 12V |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 600V |
