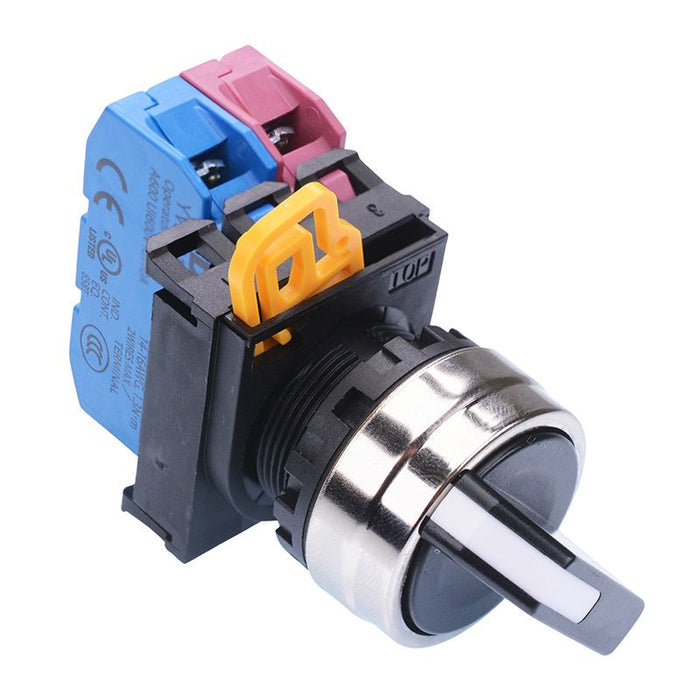

IDEC 22mm Metal Bezel 3 Position Maintained Selector Switch 1NO-1NC IP65 YW4S-3E11N4
by IDEC
SKU 932638
MPN: YW4S-3E11N4
Availability:
24 in stock
Original price
£14.17
-
Original price
£14.17
Original price
£14.17
Inc VAT
£14.17
-
£14.17
Current price
£14.17
Inc VAT
The YW4S-3E11N4 is a 3 position maintained selector switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 1NO-1NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 27.6mm knob diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 69.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Maintained |
Back order lead time | 10 Days |
Contact configuration | 1NO-1NC |
Contact rating | 2A 380V, 6A 240V |
Current rating | 10A |
Electrical life | 100,000 Cycles |
Head type | Selector |
Illuminated | No |
Illumination colour | Green |
Key index angle | 45° |
Mounting style | Panel |
Number of positions | 3 |
Operating temperature | -20°C to +55°C |
Panel cut out | 22.3mm |
Panel thickness | 0.8-6mm |
Product series | YW |
Protection level | IP65 |
Terminal type | Screw |
Voltage rating | 600V |
