IDEC 22mm Emergency Stop Switch Control Box 2NO-1NC YB1W-YW1B-V4E21R-Y0

by IDEC
SKU 486075

MPN: YB1W-YW1B-V4E21R-Y0

Availability:
26 in stock
Original price £23.35 - Original price £23.35
Original price
£23.35 Inc VAT
£23.35 - £23.35
Current price £23.35 Inc VAT

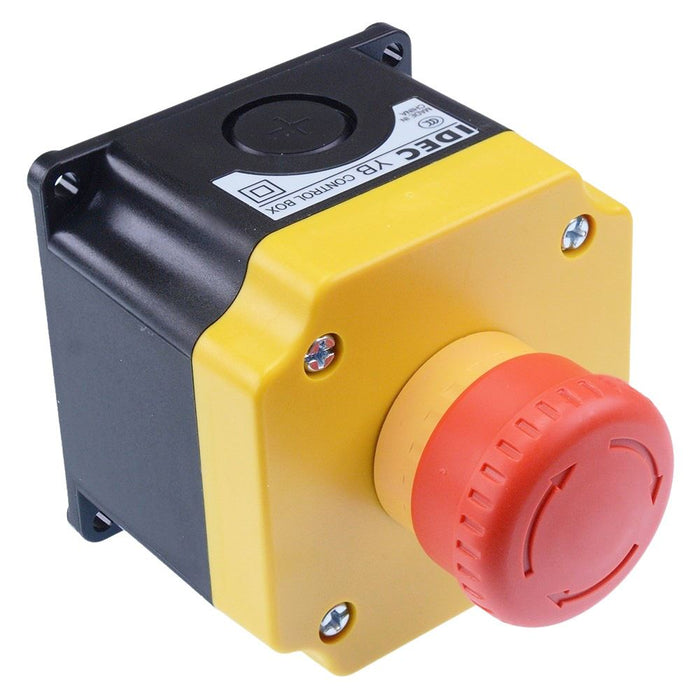

The YB1W-YW1B-V4E21R-Y0 is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 2NO-1NC contacts. The switch features can be reset by either pulling or turning and comes complete with yellow/black control box. The switch is suitable for a wide range of safety applications requiring a high quality solution.

  • 2NO-1NC contacts
  • 22mm panel hole diameter
  • IP65 protection level
  • Screw terminals
  • 40mm mushroom head
  • Contact rating: 10A 120V, 6A 240V, 2A 380V
  • Box dimensions: 76 x 76 x 59.5mm (length x width x height)
  • Specification
    Actuation Twist Release
    Back order lead time 10 Days
    Colour Red
    Contact configuration 2NO-1NC
    Contact rating 10A 120V, 6A 240V, 2A 380V
    Current rating 10A
    Illuminated No
    Number of positions 2
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Terminal type Screw
    Voltage rating 600V
