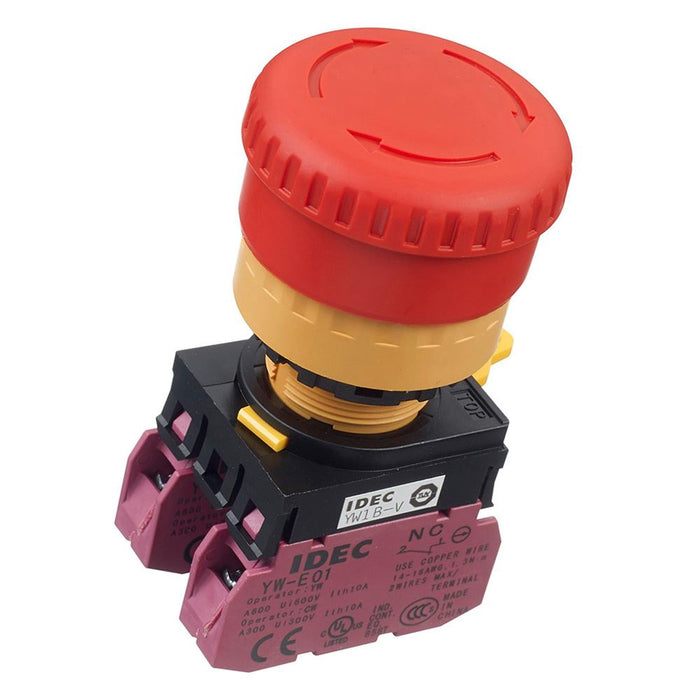

IDEC 22mm Emergency Stop Switch 2NC YW1B-V4E02R
by IDEC
SKU 485710
MPN: YW1B-V4E02R
Availability:
103 in stock
Original price
£11.12
-
Original price
£11.12
Original price
£11.12
Inc VAT
£11.12
-
£11.12
Current price
£11.12
Inc VAT
The YW1B-V4E02R is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 2NC contacts. The switch features an innovative space saving design and can be reset by either pulling or turning. The switch is suitable for a wide range of safety applications requiring a high quality solution.
2NC contacts 22mm panel hole diameter IP65 protection level Screw terminals 40mm mushroom head Contact rating: 10A 120V, 6A 240V, 2A 380V
Specification
Actuation | Twist Release |
Back order lead time | 10 Days |
Colour | Red |
Contact configuration | 2NC |
Contact rating | 10A 120V, 6A 240V, 2A 380V |
Current rating | 10A |
Illuminated | No |
Mounting style | Panel |
Number of positions | 2 |
Panel cut out | 22.3mm |
Product series | YW |
Protection level | IP65 |
Terminal type | Screw |
Voltage rating | 600V |
