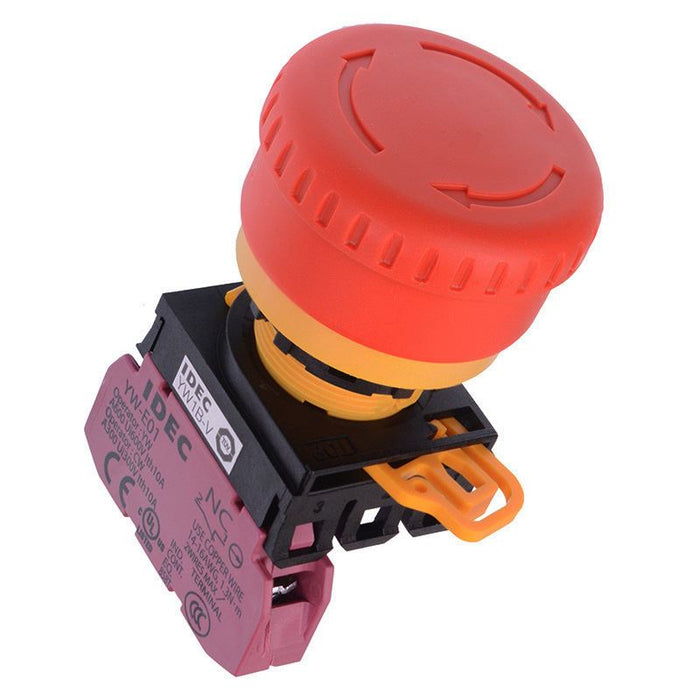

YW1B-V4E01R 22mm Emergency Stop Switch SPST 1NC IDEC

by IDEC
SKU 485709

MPN: YW1B-V4E01R

Availability:
130 in stock
Original price £8.47 - Original price £8.47
Original price
£8.47
£8.47 - £8.47
Current price £8.47
The YW1B-V4E01R is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 1NC contacts. The switch features an innovative space saving design and can be reset by either pulling or turning. The switch is suitable for a wide range of safety applications requiring a high quality solution.

  • 1NC contacts
  • 22mm panel hole diameter
  • IP65 protection level
  • Screw terminals
  • Contact rating: 10A 120V, 6A 240V, 2A 380V
  • Specification
    Actuation Twist Release
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration 1NC
    Contact Rating 10A 120V, 6A 240V, 2A 380V
    Current Rating 10A
    Illuminated No
    Mounting Style Panel
    Number of Positions 2
    Panel Cut Out 22.3mm
    Product Series YW
    Protection Level IP65
    Terminal Type Screw
    Voltage Rating 600V
    Request a quote
