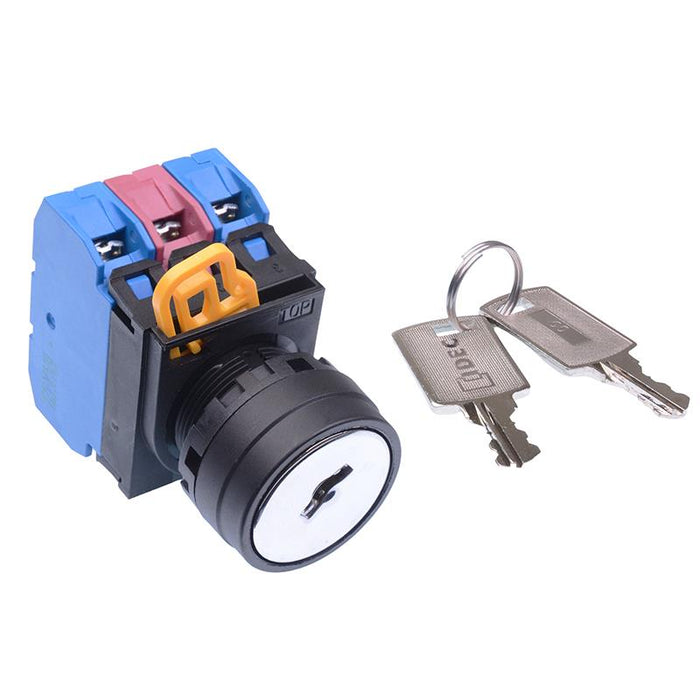

IDEC 22mm 3 Position Maintained Key Switch 2NO-1NC IP65 YW1K-3AE21
by IDEC
SKU 931909
MPN: YW1K-3AE21
Availability:
10 in stock
Original price
£25.57
-
Original price
£25.57
Original price
£25.57
Inc VAT
£25.57
-
£25.57
Current price
£25.57
Inc VAT
The YW1K-3AE21 is a 3 position maintained key switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NO-1NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out IP65 protection rating Comes with 2 keys Self cleaning contacts Interchangeable switch components Dimensions: 83.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back order lead time | 10 Days |
| Contact configuration | 2NO-1NC |
| Contact rating | 2A 380V, 6A 240V |
| Current rating | 10A |
| Electrical life | 100,000 Cycles |
| Head type | Key |
| Illuminated | No |
| Illumination colour | Red |
| Key index angle | 45° |
| Key withdrawal position | 1 & 2 |
| Mounting style | Panel |
| Number of positions | 3 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22.3mm |
| Panel thickness | 0.8-6mm |
| Product series | YW |
| Protection level | IP65 |
| Rated thermal current | 10A |
| Terminal type | Screw |
| Voltage rating | 600V |
