IDEC 22mm 2 Position Maintained Key Switch 3NO IP65 YW1K-2AE30

by IDEC
SKU 931894

MPN: YW1K-2AE30

Availability:
12 in stock
Original price £25.57 - Original price £25.57
Original price
£25.57 Inc VAT
£25.57 - £25.57
Current price £25.57 Inc VAT

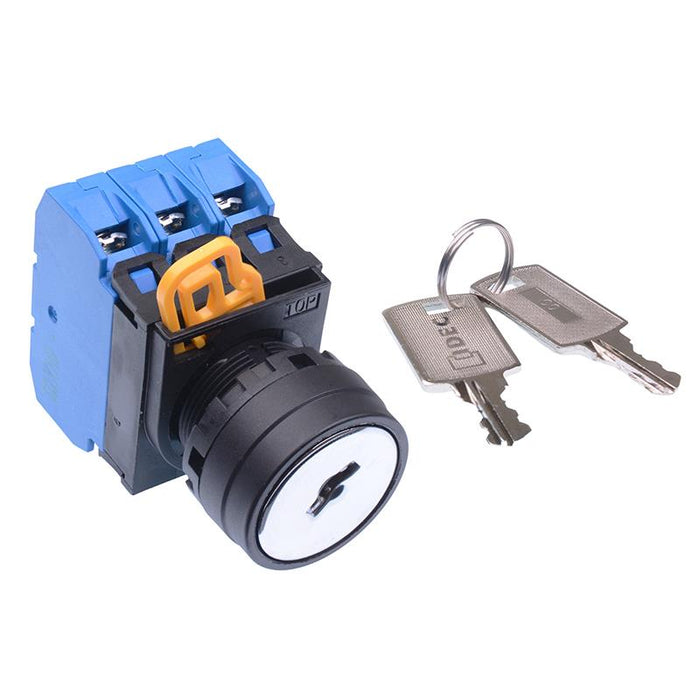

The YW1K-2AE30 is a 2 position maintained key switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 3NO contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • IP65 protection rating
  • Comes with 2 keys
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 83.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Contact configuration 3NO
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Key
    Illuminated No
    Illumination colour Red
    Key index angle 90°
    Key withdrawal position 1 & 2
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
