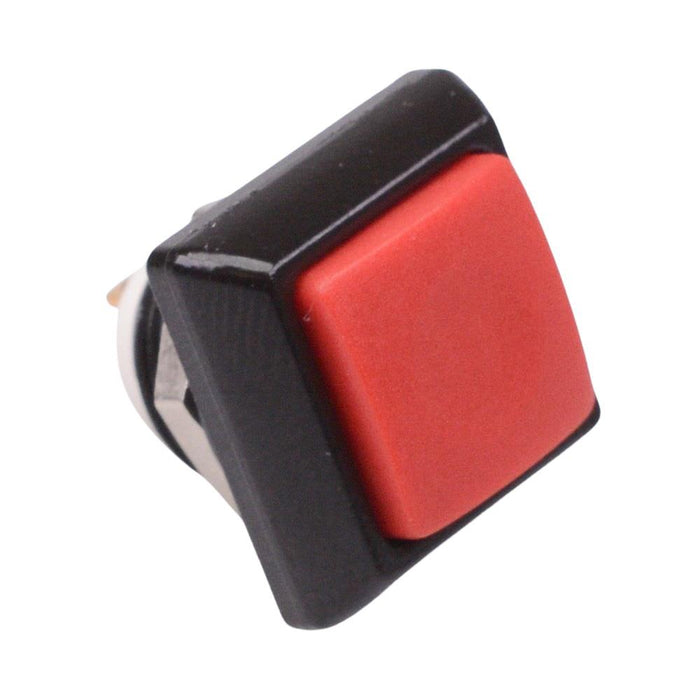

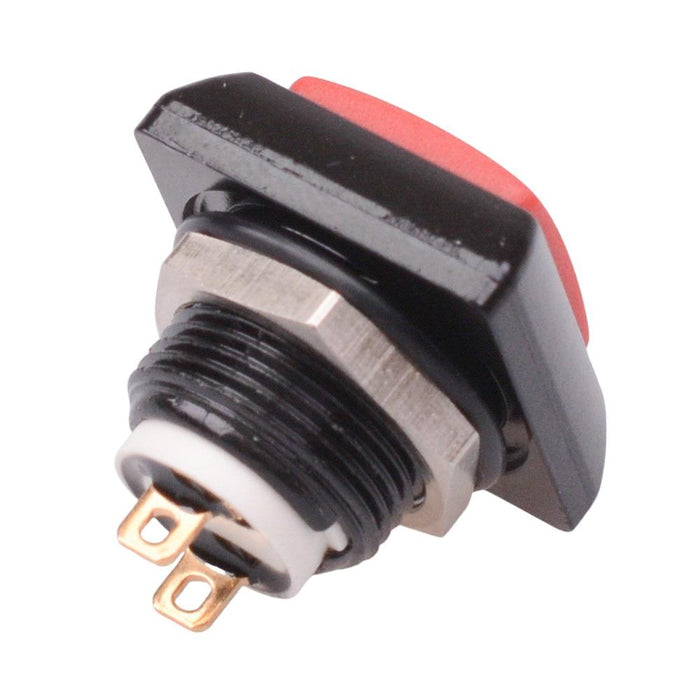

ICC3SAD6 APEM Red Square Momentary NO 12mm Push Button Switch SPST IP67
by APEM
SKU 489972
MPN: ICC3SAD6
Availability:
144 in stock
Original price
£7.68
-
Original price
£7.68
Original price
£7.68
Inc VAT
£7.68
-
£7.68
Current price
£7.68
Inc VAT
The ICC3SAD6 is a red momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug SPST contacts, suitable for a wide range of applications.
Momentary operation SPST contacts 12mm chrome bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminas Gold plated silver contacts Rating: 5A 28VDC Panel thickness: 1.5-4mm Dimensions: 20 x 17.5 x 17.5mm (height x width x length)
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 5A 28VDC |
| Current rating | 5A |
| Illuminated | No |
| Material | Zinc Diecast |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-4mm |
| Product series | IC |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 28VDC |
