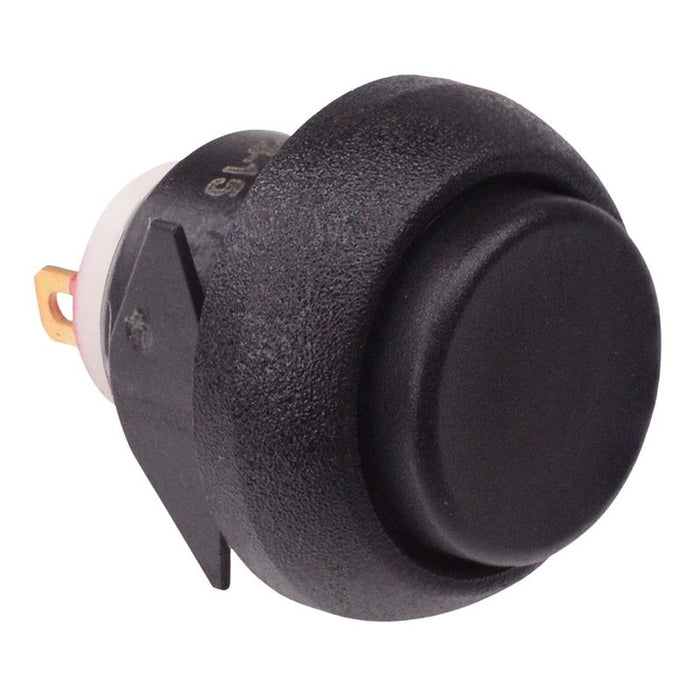

IBP3SAD200 APEM Black Momentary Snap-In 12mm Push Button Switch SPST IP67

SKU 487126


34 in stock
Original price £10.68 - Original price £10.68
Original price
£10.68 Inc VAT
£10.68 - £10.68
Current price £10.68 Inc VAT
The IBR3SA200 is a black momentary push button switch with tactile feedback when pressed and a compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

  • Momentary operation
  • SPST contacts
  • 12mm snap-in bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 400mA 32VAC - 100mA 48VDC
  • Panel thickness: 0.8-1.8mm
  • Dimensions: 20 x 17.5mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact rating 0.4A 32VAC, 0.1A 48VDC
    Current rating 0.4A @ 32VAC
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 4N
    Operating temperature -40°C to +85°C
    Panel cut out 13.6mm
    Panel thickness 0.8-1.8mm
    Product series IB
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 32VAC / 48VDC
