HW1M-F2222-22N9 4 Position 22mm Spring Return Lever Switch 4NO IDEC
by IDEC
SKU 493188
MPN: HW1M-F2222-22N9
Availability:
10 in stock
Original price
£46.44
-
Original price
£46.44
Original price
£46.44
£46.44
£46.44
-
£46.44
Current price
£46.44

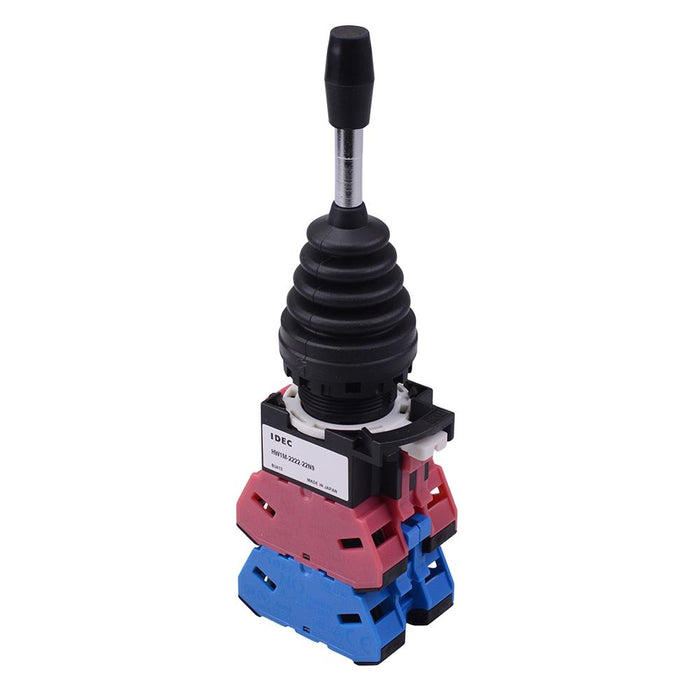

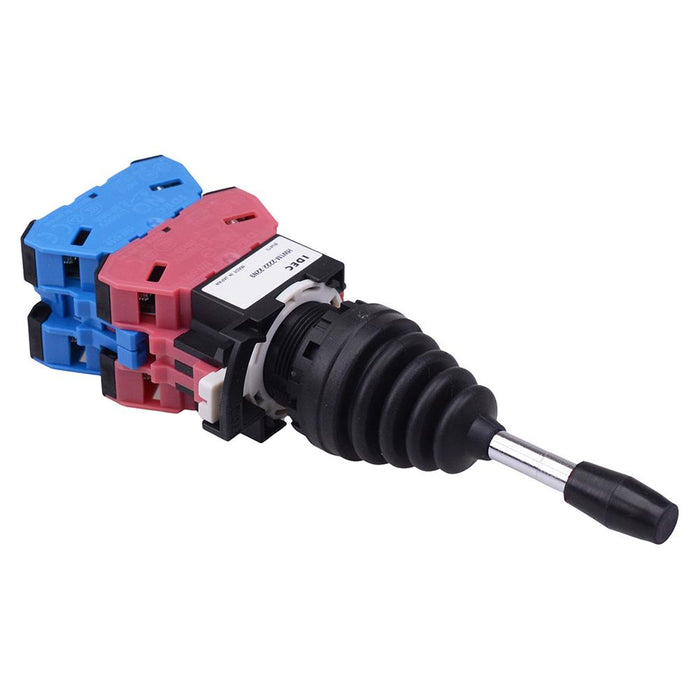

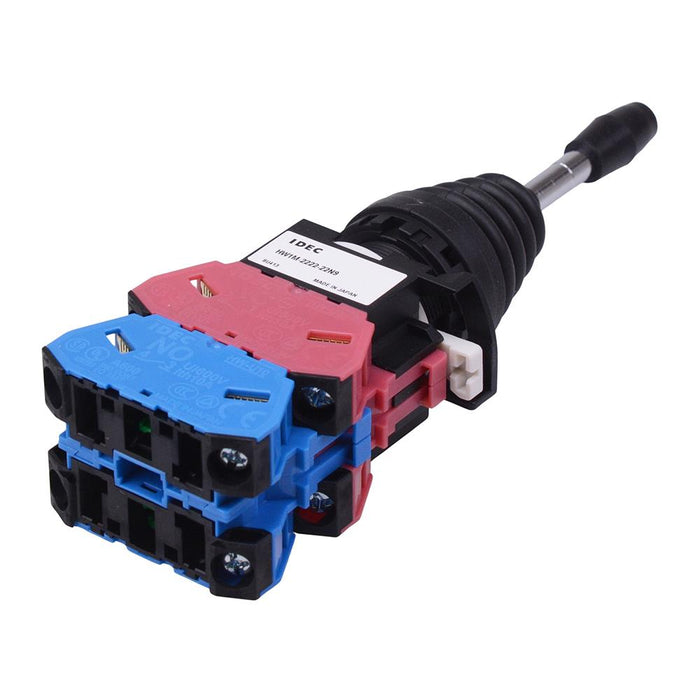

The HW1M-2222-22N9 is a momentary mono lever switch manufactured by IDEC, featuring a 4 position actuator and 4NO contacts. The switch features a rugged tamperproof construction and worldwide approvals. The switch is suitable for a wide range of applications requiring a high quality and reliable switching solution.
- Spring return all positions
- 72mm lever length
- 4NO contacts
- 22mm panel hole diameter
- 0.8 to 6mm panel thickness
- M3.5 screw terminals
- Voltage rating: 600V
- Current rating: 10A
Specification
| Back Order Lead Time | 126 Days |
| Mechanical Life | 250,000 Cycles |
| MOQ | 1 |
| Operating Temperature | -25°C to +50°C |
| Protection Level | IP65 |
| Terminal Type | Screw |
