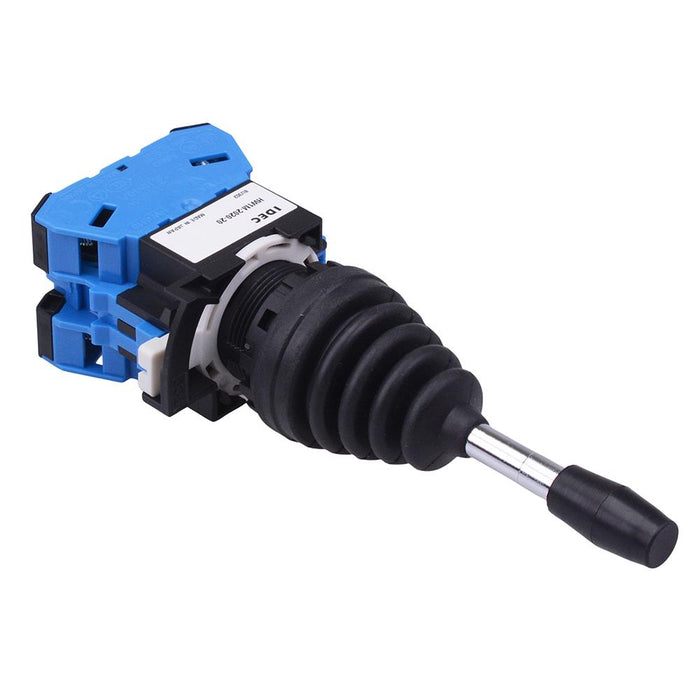

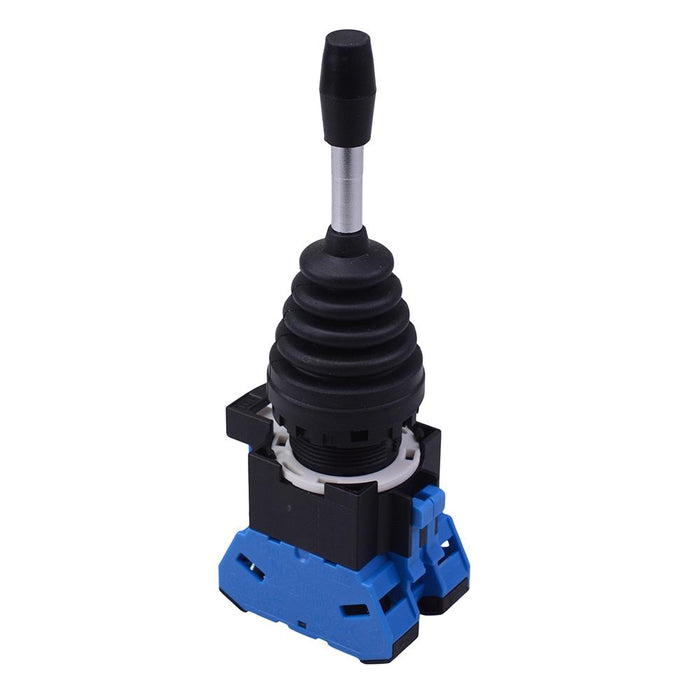

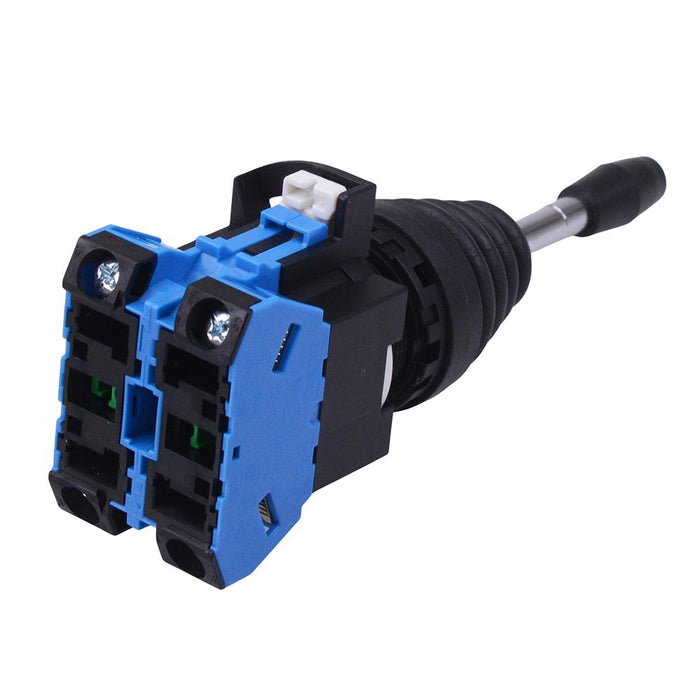

HW1M-F2020-20 2 Position 22mm Spring Return Lever Switch 2NO IDEC
by IDEC
SKU 493187
MPN: HW1M-F2020-20
Availability:
10 in stock
Original price
£43.79
-
Original price
£43.79
Original price
£43.79
£43.79
£43.79
-
£43.79
Current price
£43.79
The HW1M-2020-20 is a momentary mono lever switch manufactured by IDEC, featuring a 2 position actuator and 2NO contacts. The switch features a rugged tamperproof construction and worldwide approvals. The switch is suitable for a wide range of applications requiring a high quality and reliable switching solution.
Spring return up and down 72mm lever length 2NO contacts 22mm panel hole diameter 0.8 to 6mm panel thickness M3.5 screw terminals Voltage rating: 600V Current rating: 10A
Specification
| Back Order Lead Time | 126 Days |
| Mechanical Life | 250,000 Cycles |
| MOQ | 1 |
| Operating Temperature | -25°C to +50°C |
| Protection Level | IP65 |
| Terminal Type | Screw |
