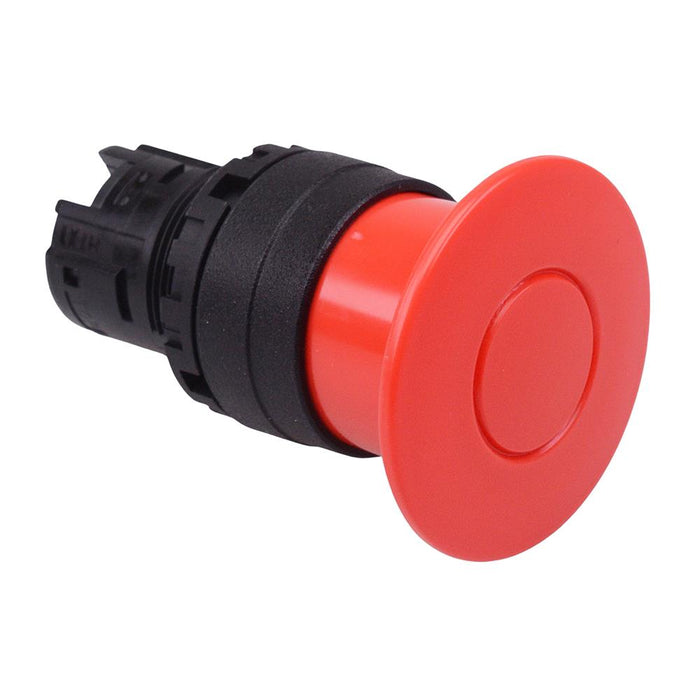

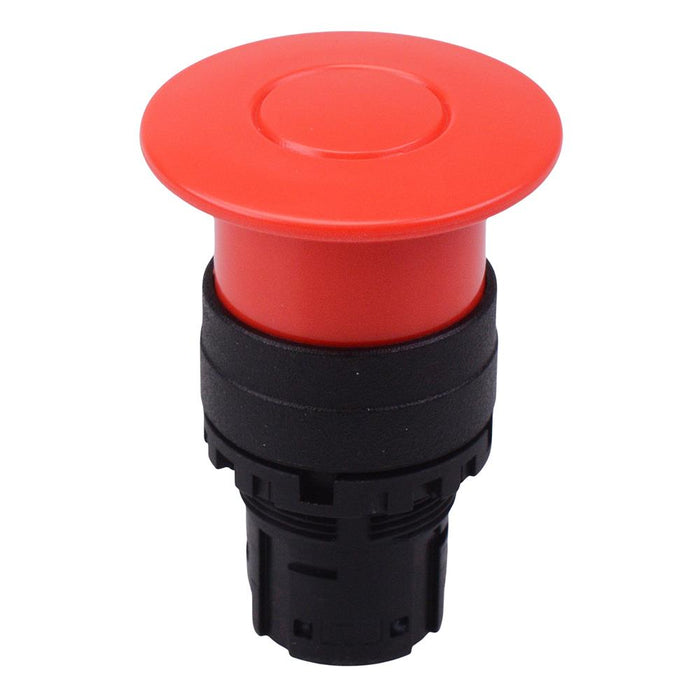

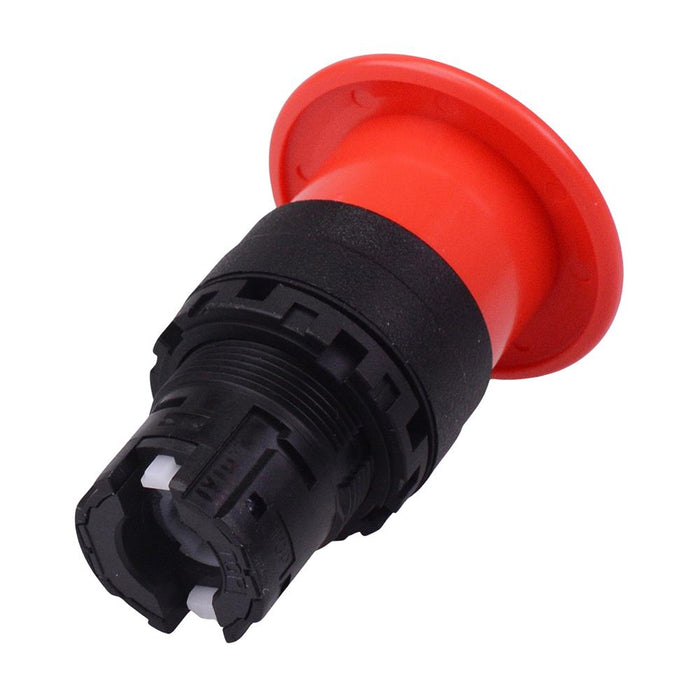

HW1B-Y2R 22mm Emergency Stop Switch 40mm Mushroom Operator IDEC
by IDEC
SKU 493184
MPN: HW1B-Y2R
Availability:
10 in stock
Original price
£13.90
-
Original price
£13.90
Original price
£13.90
£13.90
-
£13.90
Current price
£13.90
The HW1B-Y2R is an 22mm E-stop switch head manufactured by IDEC, featuring a 40mm mushroom head. The switch features an rugged design and can be reset by either pulling or turning. The switch is suitable for use with the HW series, in a wide range of safety applications requiring a reliable switching solution.
22mm panel hole diameter 40mm mushroom head Please note this head requires contact blocks, contact holder
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Contact Material | Gold Plated Silver |
| Contact Rating | 10A 600V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +50°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | HW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
