HW1B-V4F02R 22mm Emergency Stop Switch 40mm Mushroom 2NC IDEC
by IDEC
SKU 493183
MPN: HW1B-V4F02-R
Availability:
10 in stock
Original price
£26.75
-
Original price
£26.75
Original price
£26.75
£26.75
-
£26.75
Current price
£26.75

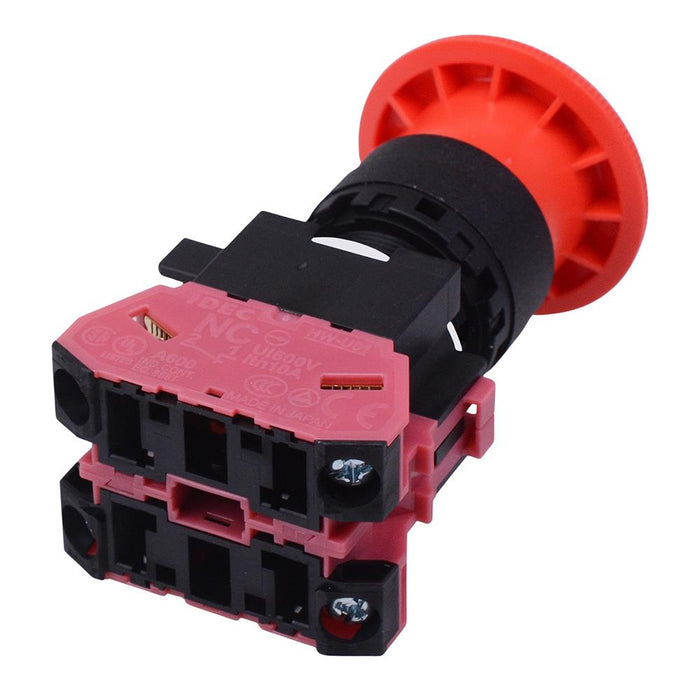

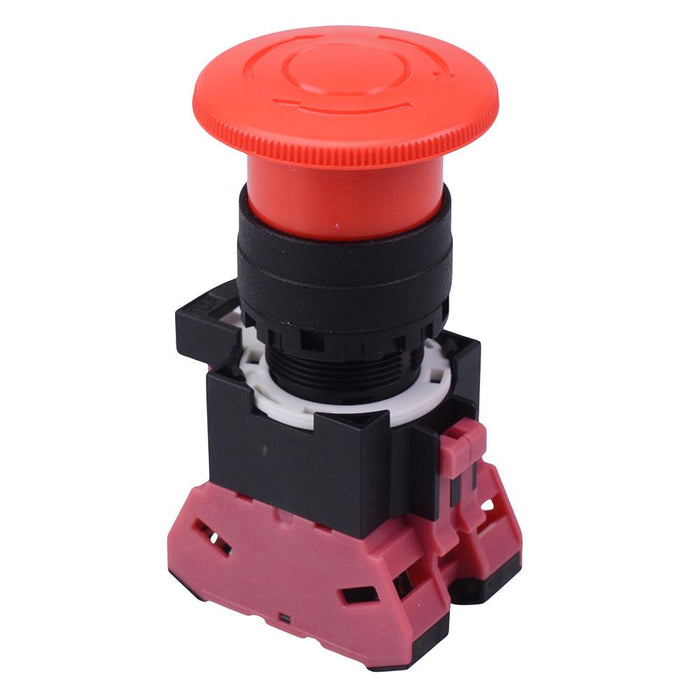

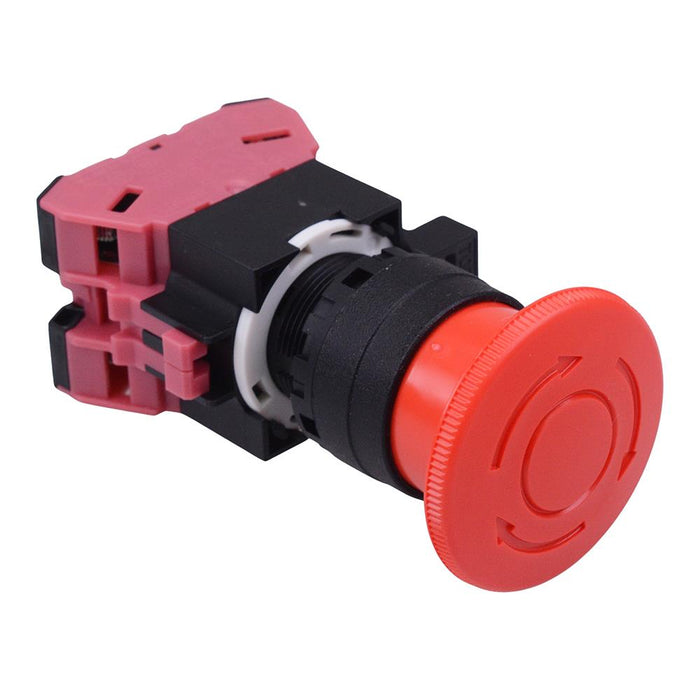

The HW1B-V402R is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 2NC contacts. The switch features a rugged construction and can be reset by either pulling or turning. The switch is suitable for a wide range of safety applications requiring a high quality and reliable safety solution.
Plastic bezel 40mm mushroom head 2NC contacts 22mm panel hole diameter Screw terminals Voltage rating: 600V Current rating: 10A
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Contact Configuration | 2NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 10A 600V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +50°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | HW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
