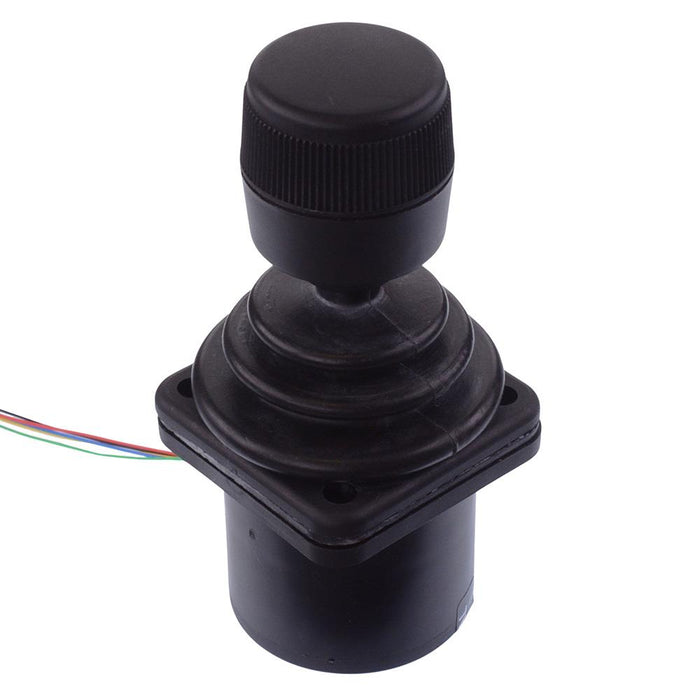

HT33S10 APEM 3 Axis Hall Effect Joystick IP68
by APEM
SKU 487245
MPN: HT33S10
Availability:
6 in stock
Original price
£354.35
-
Original price
£354.35
Original price
£354.35
Inc VAT
£354.35
-
£354.35
Current price
£354.35
Inc VAT
The HT33S10 joystick is a long life cycle, hall effect controller providing reliable 3 axis finger positioning control. The HT series joysticks are ideal for harsh environments, finger operated applications requiring increased durability and reliability. Widely used applications include on-road enclosed cabin vehicles, unmanned vehicles and military robotics.
3 axis IP68 sealing above panel Rated for 10 million lifecycles Square limiter plate Drop-in mounting Supply voltage: 5VDC Output: 0V to 5V (Rail to Rail) Panel cut-out: 46mm Mounting hole pitch: 38.2 x 38.2mm Dimensions: 114.6 x 52.1 x 52.1mm (height x length x width)
Specification
| Back order lead time | 10 Days |
| Handle | Round |
| Joystick travel | ±20° |
| Mechanical life | 10,000,000 Cycles |
| Number of axis | 3 |
| Operating temperature | -25°C to +70°C |
| Protection level | IP68 |
| Technology | Hall Effect |
| Terminal type | Tail Leads |
