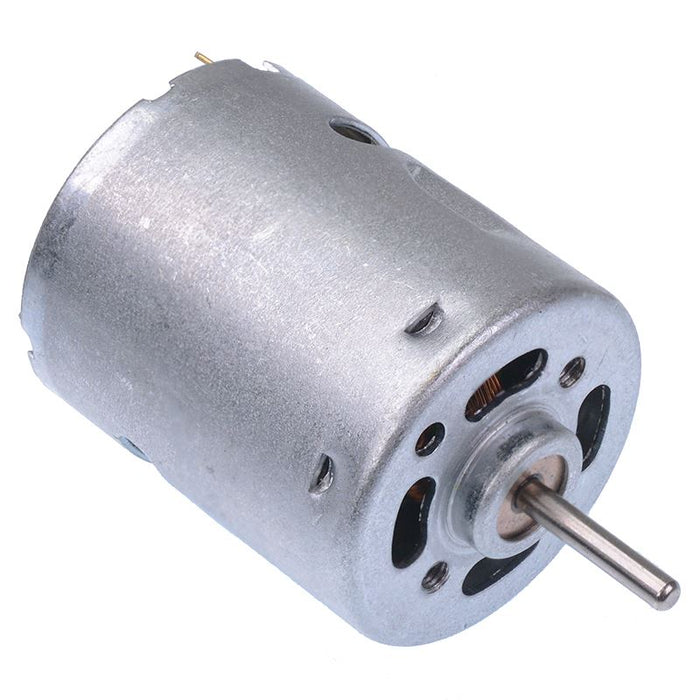

HS540 High Torque DC Motor 6-12V

SKU 485761

MPN: 485761

Out of stock
Sold out
Original price £3.76 - Original price £3.76
Original price
£3.76 Inc VAT
£3.76 - £3.76
Current price £3.76 Inc VAT
High power DC motor with a 6V to 12V operating voltage and 3.2mm diameter shaft. The motor is suitable for a wide range of applications requiring a high torque motor including industrial.

  • Operating voltage: 6-12V
  • No load speed: 20,400rpm
  • No load current: 1.9A
  • Torque: 260g-cm
  • Shaft size: 8.5 x 2mm (length x diameter)
  • Dimensions: 67 x 35.8mm (length x diameter)
  • Specification
    Back order lead time 120 Days
    Diameter 35.8mm
    Length 67mm
    No load current 1.9A
    No load speed 20,400rpm
    Operating voltage 6-12V
    Rated load current 12A
    Rated load speed 17,600rpm
    Rated voltage 7V
    Shaft diameter 2.0mm
    Shaft length 8.5mm
