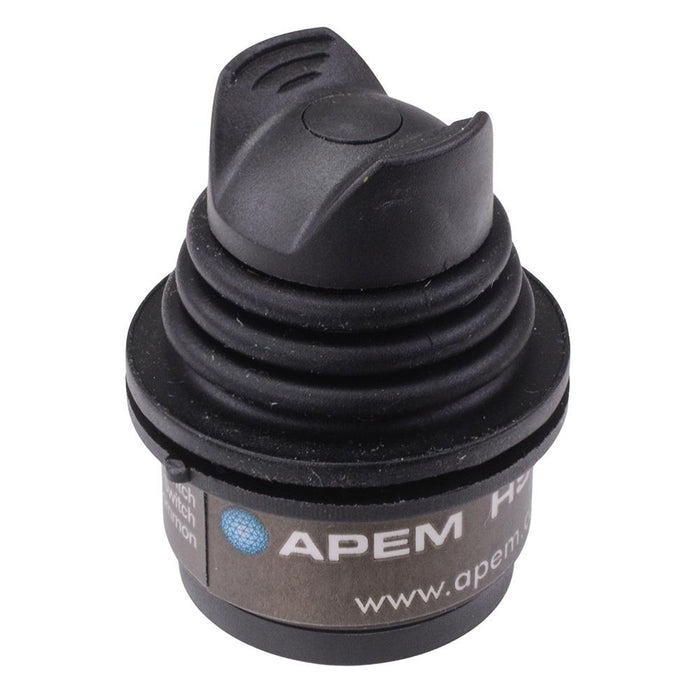

HS2A22SA APEM Single Axis Thumb Control Joystick IP67
by APEM
SKU 487975
MPN: HS2A22SA
Availability:
Only 1 left!
Original price
£66.51
-
Original price
£66.51
Original price
£66.51
Inc VAT
£66.51
-
£66.51
Current price
£66.51
Inc VAT
The HS Series miniature joystick is a single pole, MOM-OFF-MOM micro switching joystick. Numerous button styles are available and the HS series may be specified for 2-way, 4-way and 5-way operation.
The HS2A22SA is a miniature single axis joystick featuring momentary-off-momentary function. The joystick features a winged hat handle and is suitable for drop-in or rear mounting.

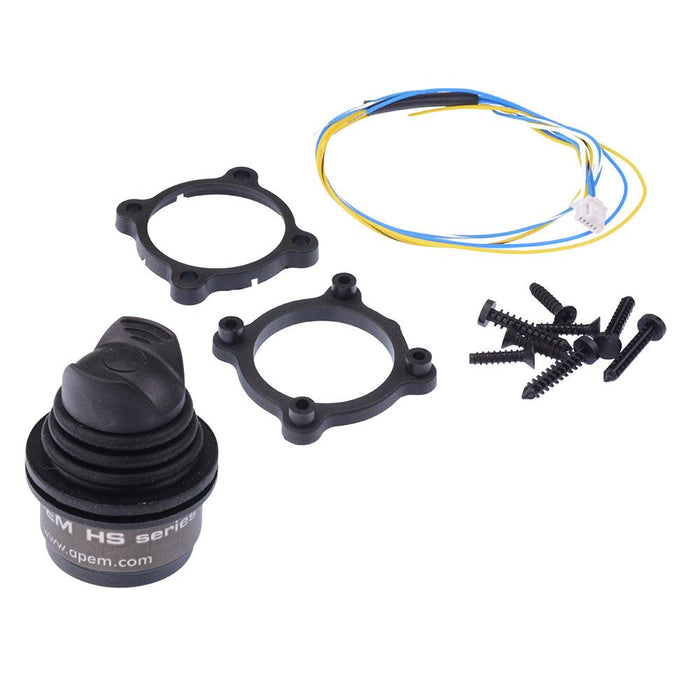

IP67 sealing Positive tactile feedback Momentary-off-momentary action Silver plated contacts Current rating: 100mA 30VDC Termination: 1.00 mm (0.039 in) pitch molex connector with 10" mating harness Panel cut-out: 25.65mm Comes complete with mounting kit Dimensions: 35.84 x 25.4mm (height x diameter)
The HS2A22SA is a miniature single axis joystick featuring momentary-off-momentary function. The joystick features a winged hat handle and is suitable for drop-in or rear mounting.
Specification
| Back order lead time | 10 Days |
| Handle | Thumb |
| Joystick travel | ±15° |
| Mechanical life | 300,000 Cycles |
| Number of axis | 1 |
| Operating temperature | -25°C to +80°C |
| Protection level | IP67 |
| Technology | Microswitch |
| Terminal type | 1.00mm Molex Connector |
