High Torque Round DC Motor 1.5V to 6.0V 9600rpm
SKU 480854
MPN: 480854
Availability:
733 in stock
Original price
£1.54
-
Original price
£1.54
Original price
£1.54
£1.54
-
£1.54
Current price
£1.54

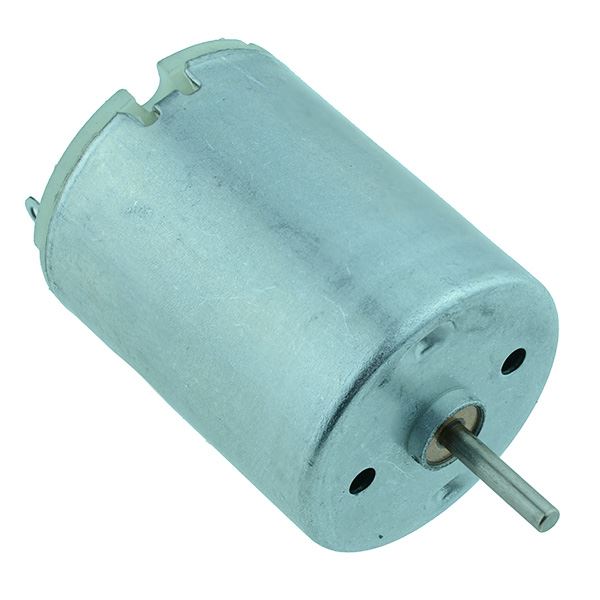

High torque miniature DC motor with a 1.5V to 6.0V operating range and 9600rpm speed, suitable for educational and model applications.
Nominal voltage: 3.0V Operating voltage: 1.5-6.0V No load speed: 9600rpm No load current: 0.25A Speed at maximum efficiency: 7790rpm Current at maximum efficiency: 1.14A Output: 1.58W Dimensions: 30.5 x 24mm (Length x Diameter) Shaft size: 10 x 2mm (Length x Diameter)
Specification
| Back Order Lead Time | 120 Days |
| Diameter | 24mm |
| Length | 30.5mm |
| No Load Current | 0.25A |
| No Load Speed | 9600rpm |
| Operating Voltage | 1.5-6V |
| Rated Load Current | 1.14A |
| Rated Load Speed | 7790rpm |
| Rated Voltage | 3V |
| Shaft Diameter | 2.0mm |
| Shaft Length | 10mm |
