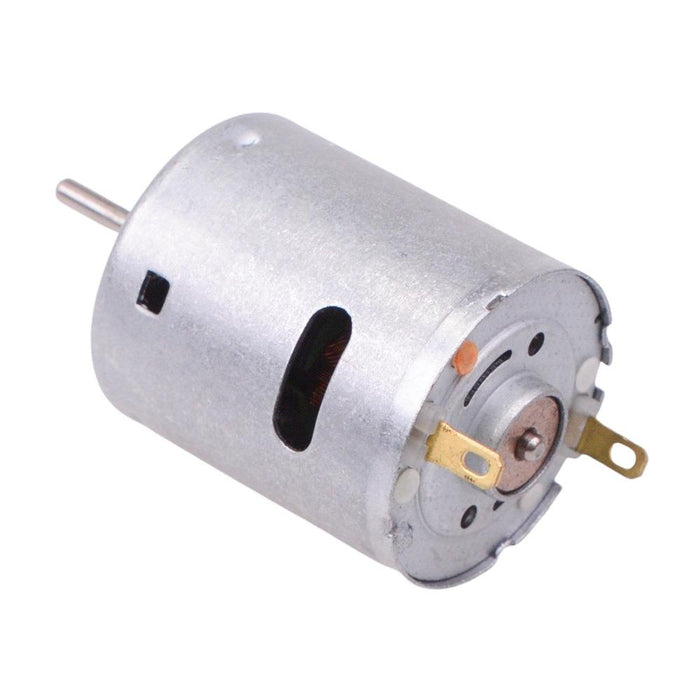

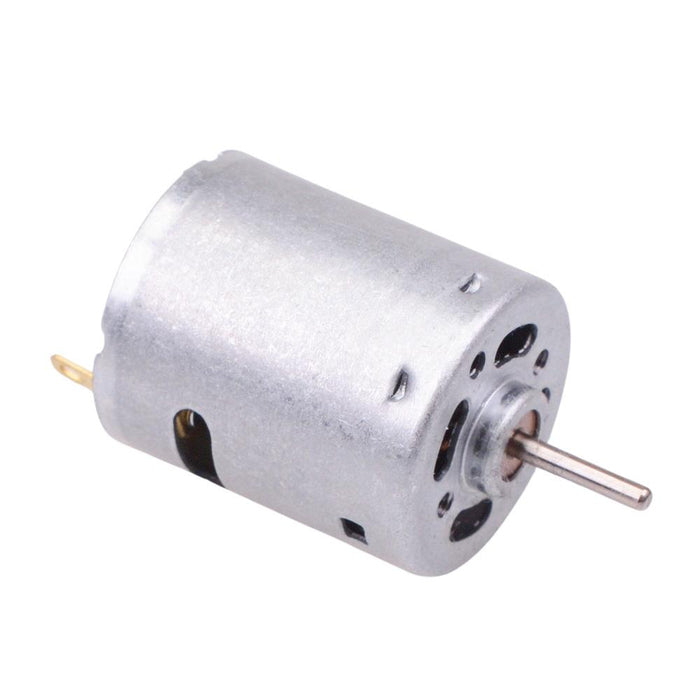

High Power 12V Round DC Motor 25,500rpm
SKU 490192
MPN: KRS-365SH-2650
Availability:
944 in stock
Original price
£2.06
-
Original price
£2.06
Original price
£2.06
£2.06
£2.06
-
£2.06
Current price
£2.06
High power DC motor featuring 6-18VDC operating voltage and up to 25,500rpm speed with a load. The motor is suitable for robotics, crafts, models and various other applications.
Nominal voltage: 12V Operating voltage: 6-18V No load speed: 25,500rpm No load current: 0.4A Speed at maximum efficiency: 20,930rpm Current at maximum efficiency: 1.83A Output: 11.7W Dimensions: 32.6 x 27.7mm (length x diameter) Shaft size: 2.3 x 15mm (diameter x length)
Specification
| Back Order Lead Time | 120 Days |
| Diameter | 27.7mm |
| Length | 32.6mm |
| MOQ | 1 |
| No Load Current | 0.4A |
| No Load Speed | 25,500rpm |
| Operating Voltage | 6-18V |
| Rated Load Current | 1.83A |
| Rated Load Speed | 20,930rpm |
| Rated Voltage | 12V |
| Shaft Diameter | 2.3mm |
| Shaft Length | 15mm |
