HG34MIY000E APEM 2 Axis Hall Effect Joystick 5 Control Wheels

by APEM
SKU 487225

MPN: HG3677

Availability:
Only 2 left!
Original price £966.46 - Original price £966.46
Original price
£966.46
£966.46 - £966.46
Current price £966.46

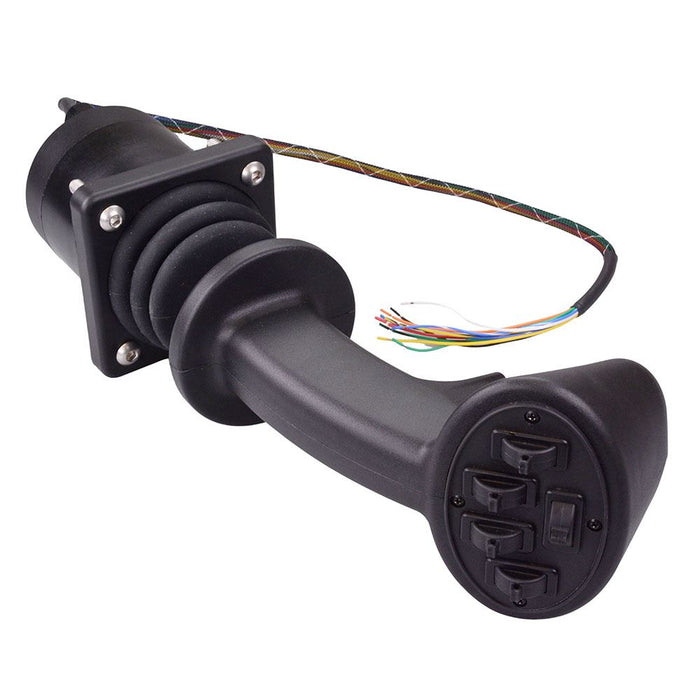

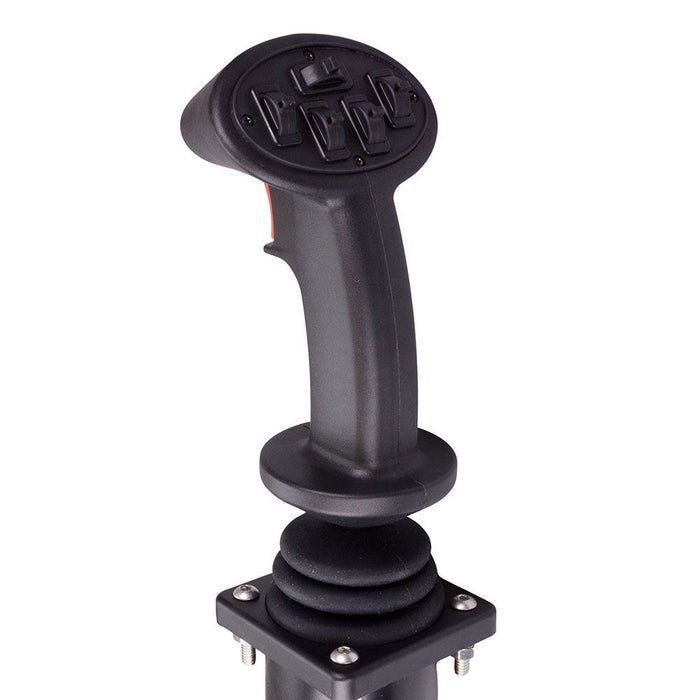

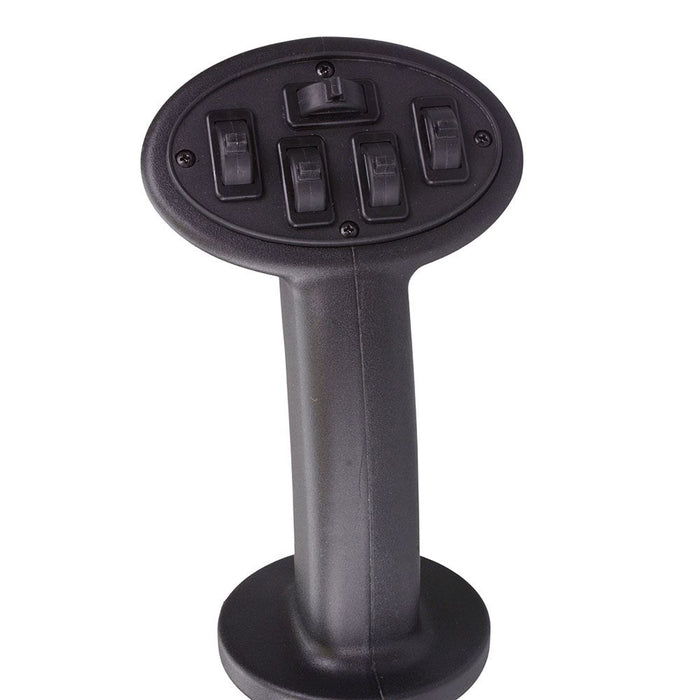

The HG34MIY000E is a hand grip hall effect joystick featuring a rugged design for use in hand-operated applications requiring reliable positioning control. The HG series are custom configurede to meet the exacting requirements of harsh applications including military vehicles, refuse handling trucks as well as fire and off-highway vehicles.

  • Hall effect sensing
  • Sealed up to IP68
  • 10 million life cycles
  • 0V to 5V output (rail to rail)
  • 2 axis
  • Index trigger
  • 5 x spring return 3 position control wheels
  • Slotted limiter plate
  • Supply voltage: 5VDC
  • Panel cut-out: 71.4mm
  • Mounting hole pitch: 61 x 61mm
  • Specification
    Back Order Lead Time 10 Days
    Joystick Travel ±19°
    Mechanical Life 10,000,000 Cycles
    Number of Axis 2
    Operating Temperature -25°C to +70°C
    Protection Level IP68
    Technology Hall Effect
    Terminal Type Tail Leads
