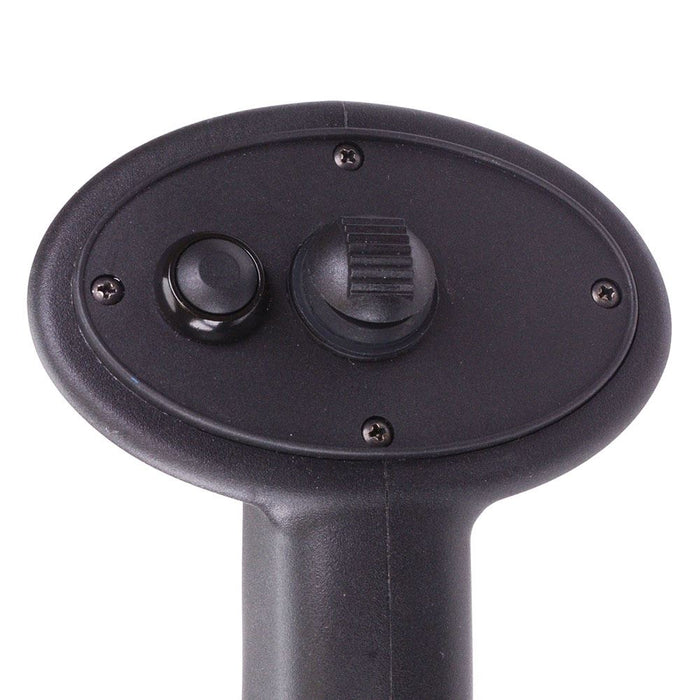

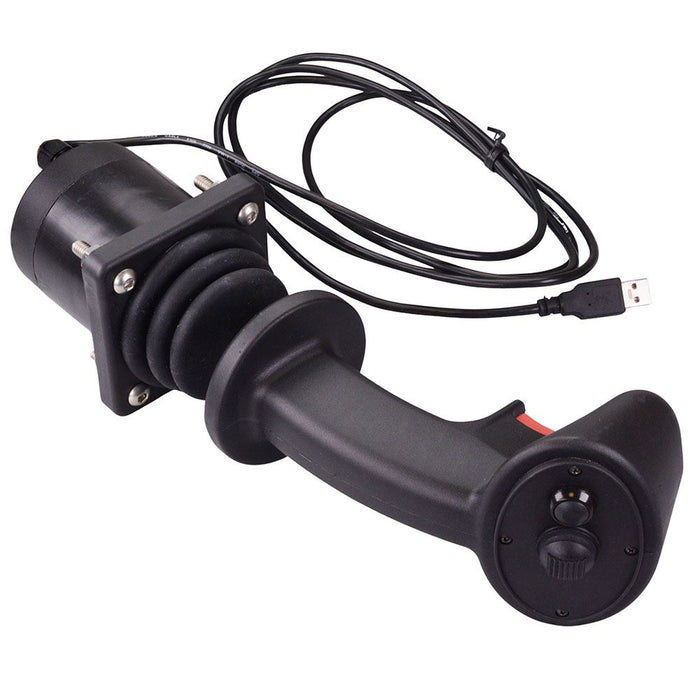

HG34MIS000UE APEM 2 Axis Hall Effect Joystick USB
by APEM
SKU 487232
MPN: HG3105
Availability:
Only 1 left!
Original price
£575.64
-
Original price
£575.64
Original price
£575.64
Inc VAT
£575.64
-
£575.64
Current price
£575.64
Inc VAT
The HG34MIS000UE is a hand grip hall effect joystick featuring a rugged design for use in hand-operated applications requiring reliable positioning control. The HG series are custom configured to meet the exacting requirements of harsh applications including military vehicles, refuse handling trucks as well as fire and off-highway vehicles.
Hall effect sensing Sealed up to IP68 10 million life cycles USB output 2 axis Index trigger 3 position selector switch and push button Square limiter plate Supply voltage: 5VDC Panel cut-out: 71.4mm Mounting hole pitch: 61 x 61mm
Specification
| Back order lead time | 10 Days |
| Joystick travel | ±19° |
| Mechanical life | 10,000,000 Cycles |
| Number of axis | 2 |
| Operating temperature | -25°C to +70°C |
| Protection level | IP68 |
| Technology | Hall Effect |
| Terminal type | USB |
