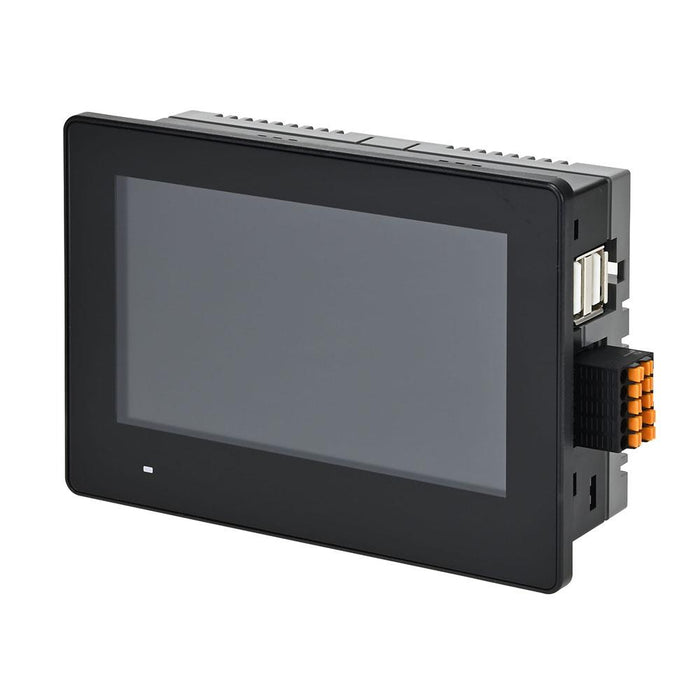

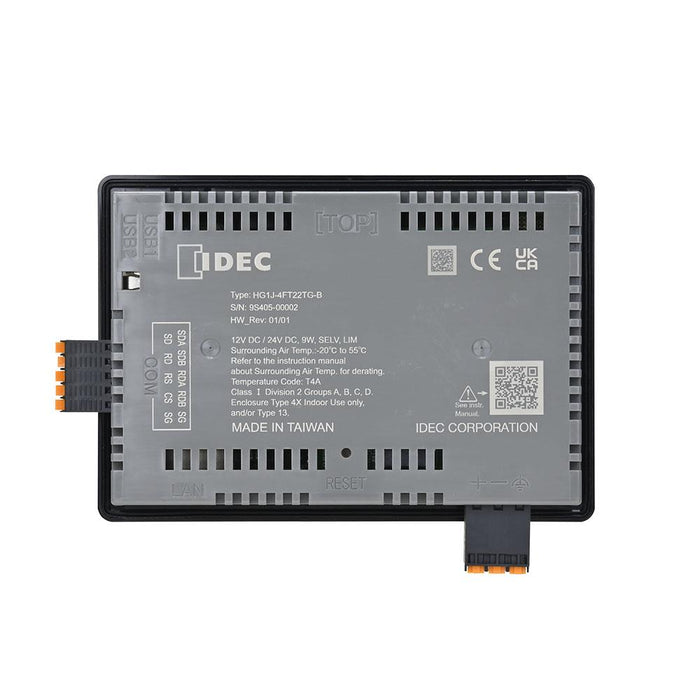

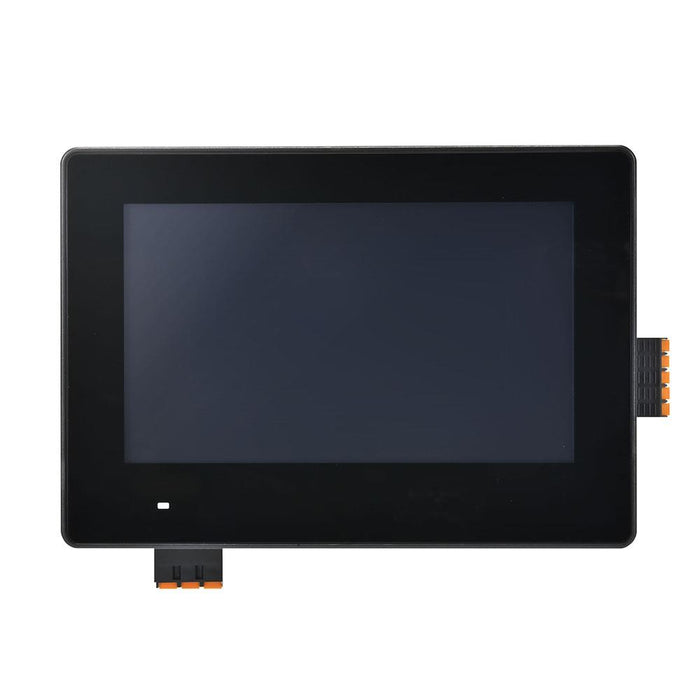

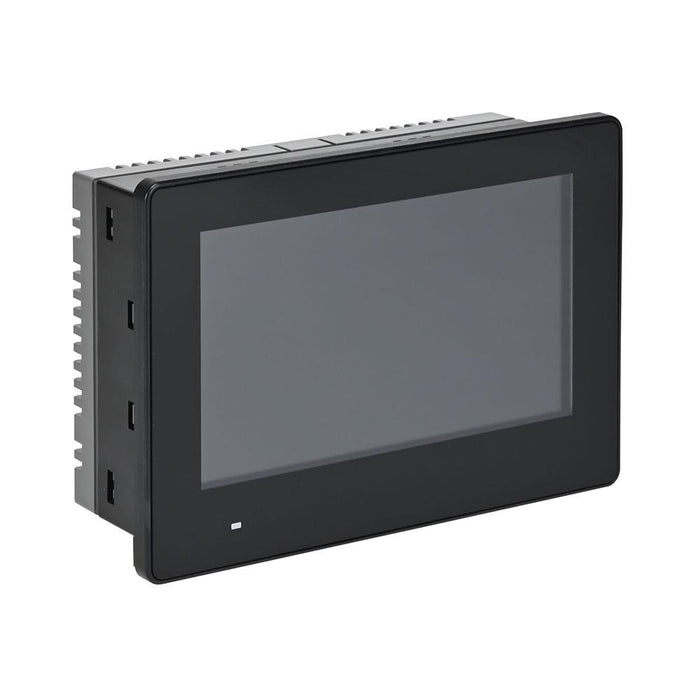

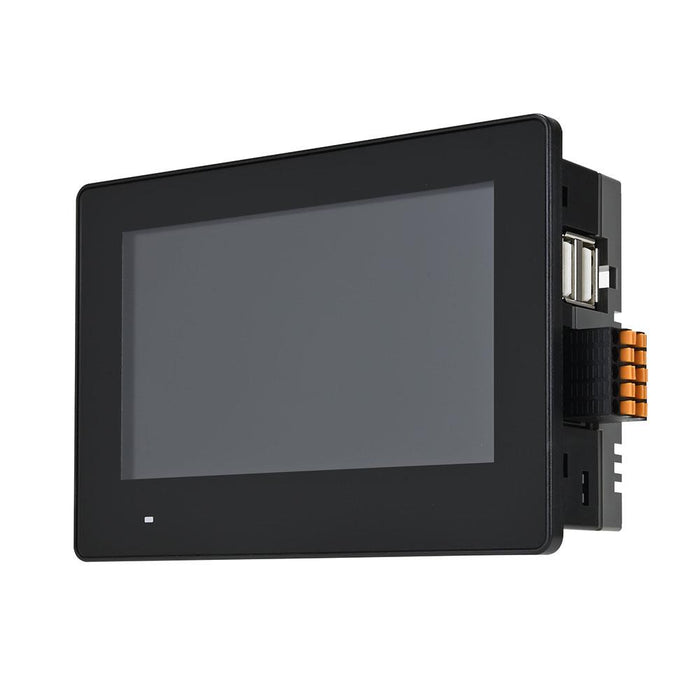

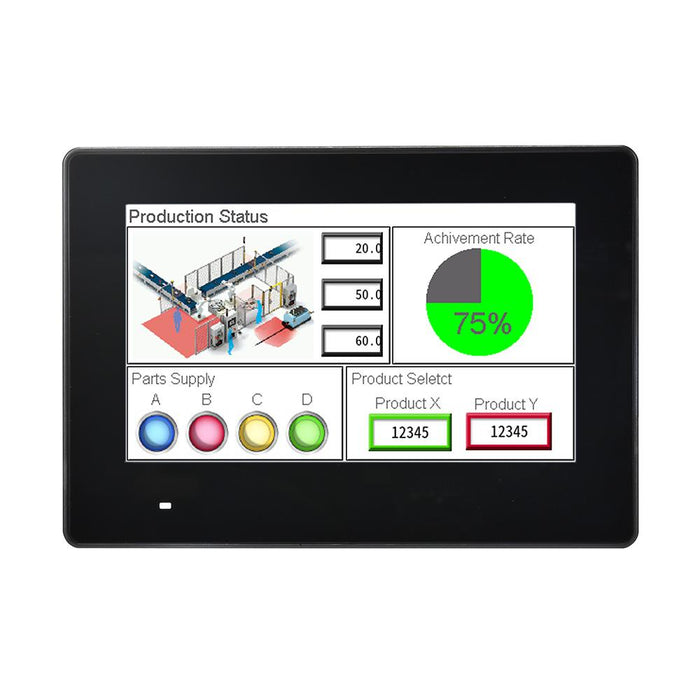

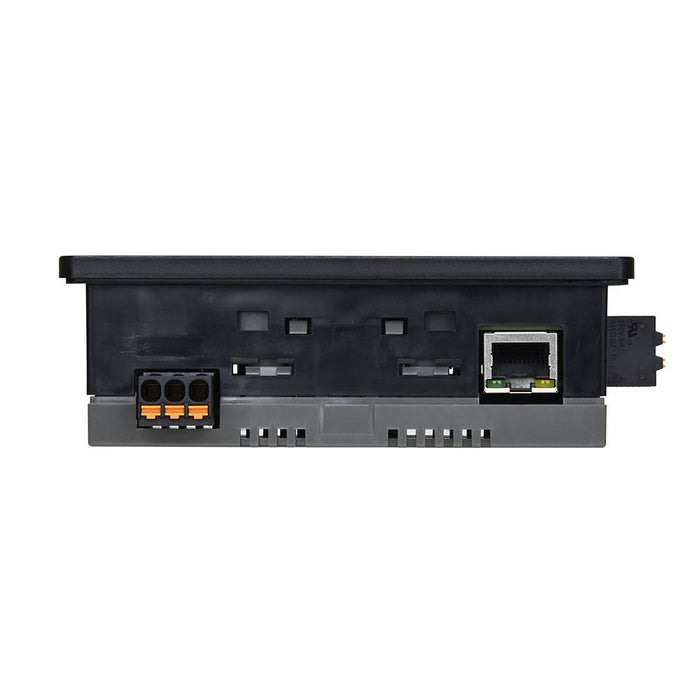

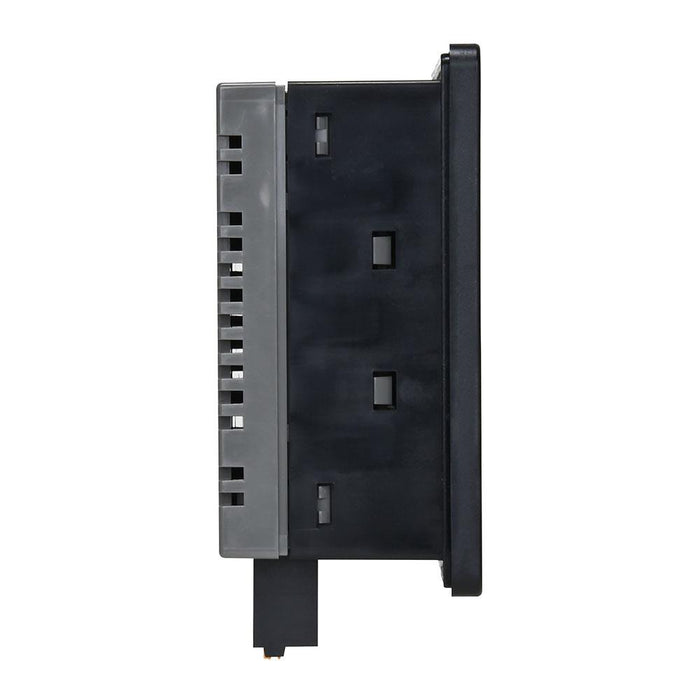

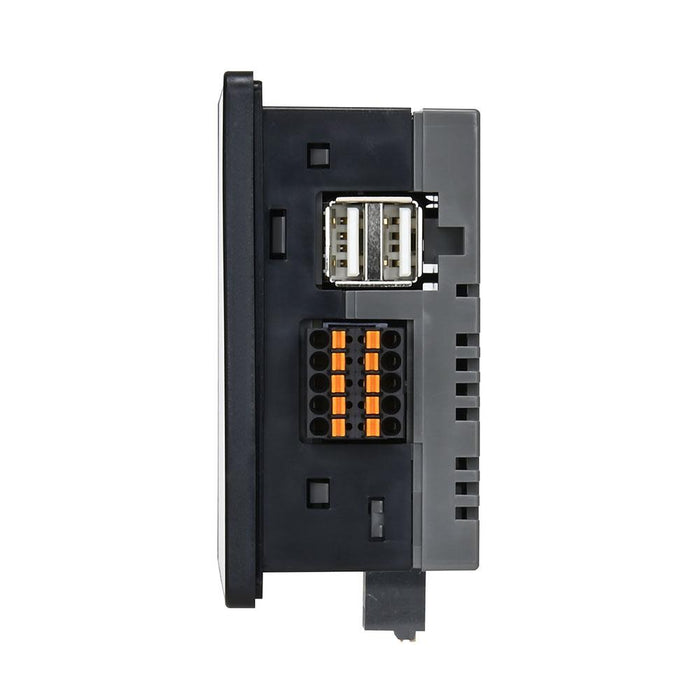

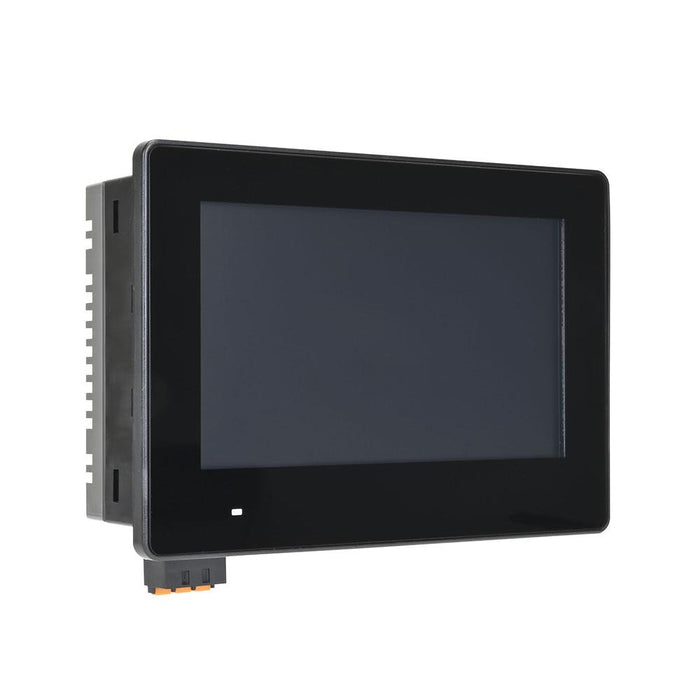

HG1J-4FT22TG-B 4.3" Capacitive Touch Screen Display TFT LCD IDEC
by IDEC
SKU 493931
MPN: HG1J-4FT22TG-B
Availability:
Only 2 left!
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£384.75
£384.75
-
£384.75
Current price
£384.75
The HG1J 4.3-inch PCAP HMI display offers an unmatched combination of compact size and powerful functionality. Designed for applications where space is at a premium, this feature-packed HMI maximizes display area while minimizing footprint. With 16 million colors, 500 nits of brightness, and a 480 x 272 resolution, the HG1J delivers a high-quality user experience. It operates reliably with a 12-24VDC input voltage and functions within a wide temperature range of -20°C to 55°C, making it suitable for various industrial environments.
480 x 272 resolution 50,000 Hours Backlight Life 500 cd/m² Brightness -20 to +55˚C Extreme Operating Temperature Remote Access, FTP, Email, Mobile, App and More Supports MQTT, EtherNet/IP, Modbus TCP/IP, and BACnet/IP 3-year Warranty
Specification
| Back Order Lead Time | 7 Days |
| Colour | Black |
| Depth | 41.3mm |
| Display Resolution | 480x272 |
| Display Size | 4.3-Inch |
| Display Type | TFT |
| Height | 86.5mm |
| MOQ | 1 |
| Operating Temperature | -20°C to +55°C |
| Panel Thickness | 1-5mm |
| Protection Level | IP66F / IP67F |
| Rated Voltage | 12-24VDC |
| Voltage Range | 10.2-28.8VDC |
| Width | 123.8mm |
