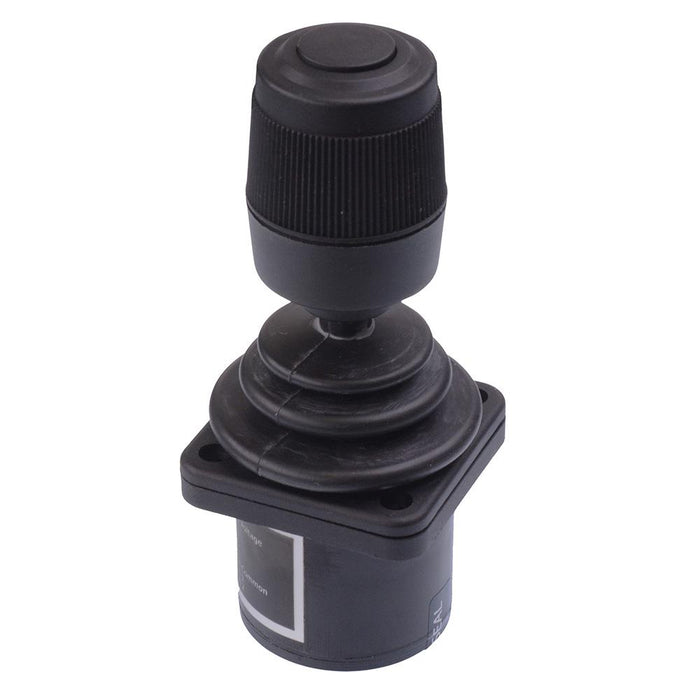

HFX44R10 APEM 3 Axis + Pushbutton Fingertip Hall Effect Joystick

The HFX44R10 joystick is designed for precision finger operated applications requiring proportional control and long trouble-free life. Featuring 3 axis and non-contacting hall effect technology for three million lifecycle performance. Featuring CH Products core hall effect technology and patented joystick mechanism, the HFX series has been field tested and proven for more than a dozen years. The HFX series joysticks compact size, low operational force and high reliability make it ideally suited for clean environment applications including coordinate measuring machines, CCTV equipment and broadcast camera control.

• 3 axis with pushbutton
• IP68 sealing above panel
• Rated for 3 million lifecycles
• Round limiter plate
• Drop-in mounting
• Supply voltage: 5VDC
• Output: 0V to 5V (Rail to Rail)
• Panel cut-out: 41.66mm
• Mounting hole pitch: 35.56 x 35.56mm
• Dimensions: 48.51 x 48.51 x 108.46mm (length x width x height)
