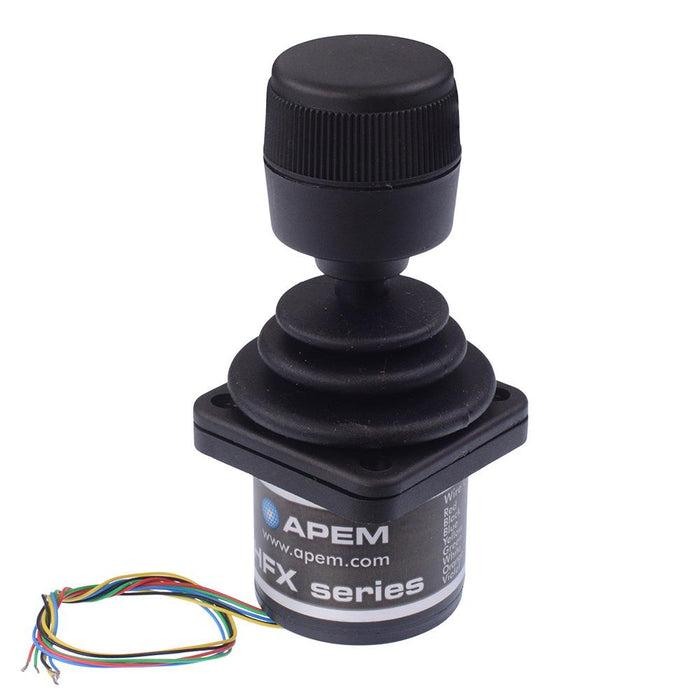

HFX33R10 APEM 3 Axis Fingertip Hall Effect Joystick
by APEM
SKU 487768
MPN: HFX33R10
Availability:
Out of stock
Sold out
Original price
£217.55
-
Original price
£217.55
Original price
£217.55
Inc VAT
£217.55
-
£217.55
Current price
£217.55
Inc VAT
The HFX33R10 joystick is designed for precision finger operated applications requiring proportional control and long trouble-free life. Featuring 3 axis and non-contacting hall effect technology for three million lifecycle performance. Featuring CH Products core hall effect technology and patented joystick mechanism, the HFX series has been field tested and proven for more than a dozen years. The HFX series joysticks compact size, low operational force and high reliability make it ideally suited for clean environment applications including coordinate measuring machines, CCTV equipment and broadcast camera control.
3 axis IP68 sealing above panel Rated for 3 million lifecycles Round limiter plate Drop-in mounting Supply voltage: 5VDC Output: 0V to 5V (Rail to Rail) Panel cut-out: 41.66mm Mounting hole pitch: 35.56 x 35.56mm Dimensions: 48.51 x 48.51 x 108.46mm (length x width x height)
Specification
| Back order lead time | 10 Days |
| Handle | Round |
| Joystick travel | ±18° |
| Mechanical life | 3,000,000 Cycles |
| Number of axis | 3 |
| Operating temperature | -25°C to +70°C |
| Protection level | IP68 |
| Technology | Hall Effect |
| Terminal type | Tail Leads |
