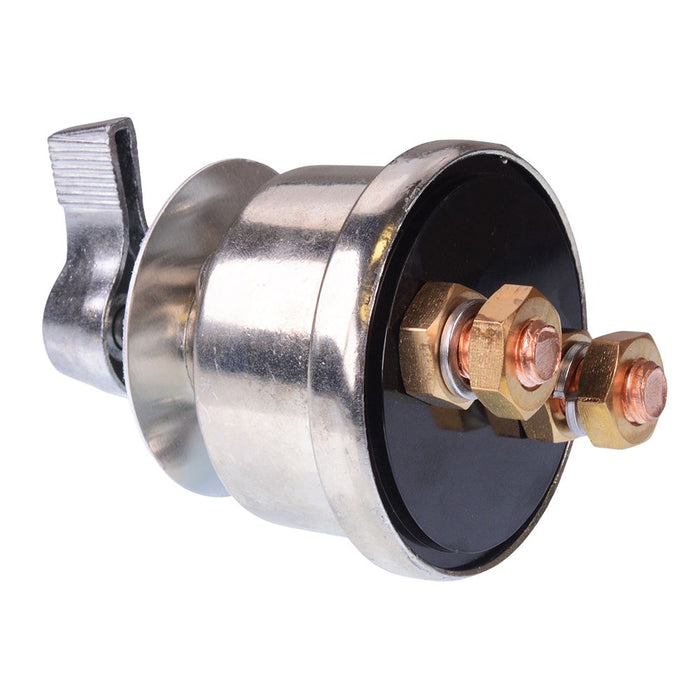

Heavy Duty Battery Cut Off Isolator Switch 300A

SKU 486910

MPN: 486910

Availability:
Out of stock
Sold out
Original price £13.63 - Original price £13.63
Original price
£13.63 Inc VAT
£13.63 - £13.63
Current price £13.63 Inc VAT
Heavy duty battery disconnect switch featuring a sturdy construction, rated up to 300A continuous current. The switch features SPST contacts and is suitable for 12V-48V applications including automotive, boats, trucks etc.

  • SPST contacts
  • 2 x M10 studs
  • Metal housing
  • 300A maximum continuous current
  • 1000A maximum intermittent current
  • Dimensions: 107 x 35mm (height x diameter)
  • Specification
    Back order lead time 40 Days
    Continuous rating 300A
    Current rating 300A
    Electrical life 10,000 Cycles
    Mounting style Chassis Mount
    Number of positions 2
    Operating temperature -25°C to +85°C
    Switch operation Off-On
    Terminal type M10 Studs
    Voltage rating 48VDC
