Heated Rear Windscreen illuminated Automotive Momentary 12mm Push Button Switch SPST IP67
by APEM
SKU 489989
MPN: IPP3FAD2R0Y101X1223-17
Availability:
25 in stock
Original price
£18.90
-
Original price
£18.90
Original price
£18.90
Inc VAT
£18.90
-
£18.90
Current price
£18.90
Inc VAT

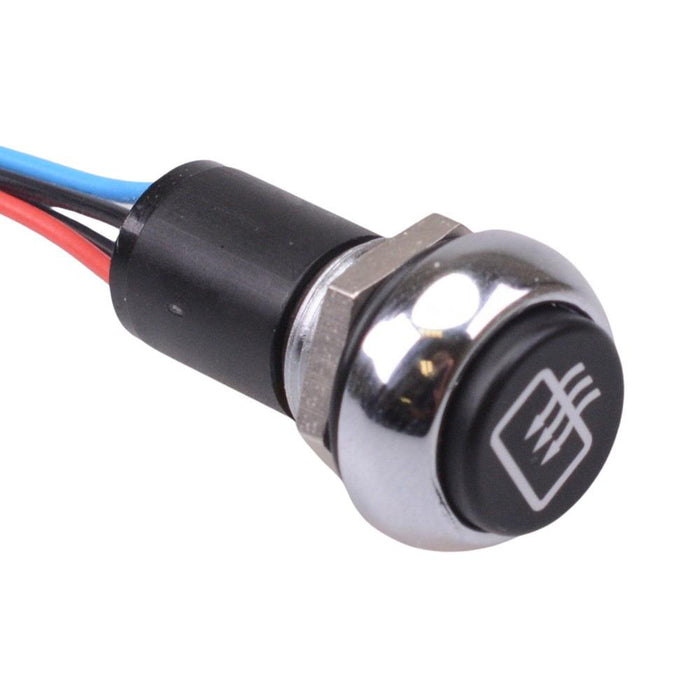

The IPP3FAD2R0Y101X1223-17 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.
Heated rear windscreen illuminated symbol Momentary NO operation Yellow LED LED forward voltage: 2.1V LED forward current: 20mA 150mm flying leads SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 29.8 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Colour | Black |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 2.1V |
| Material | Zinc Diecast |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-4mm |
| Product series | IP |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 48VAC/DC |
