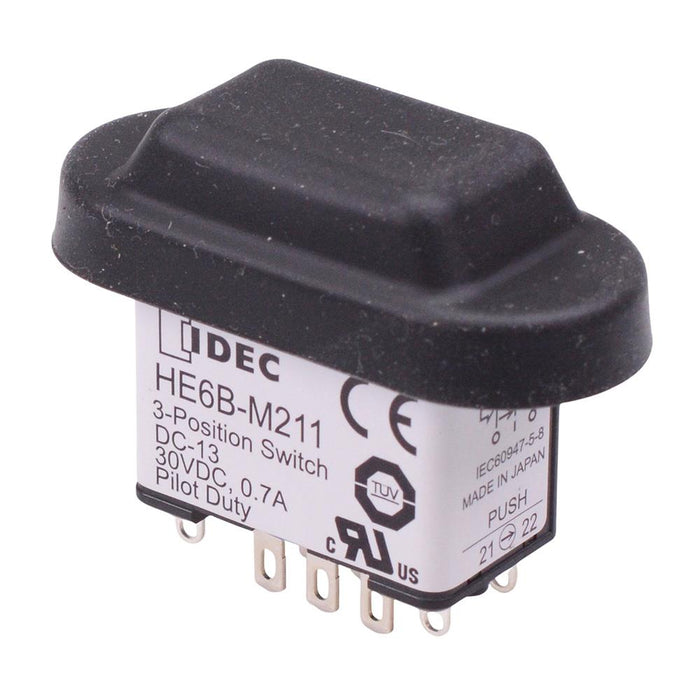

HE6B-M211B Black Double 3-Position Return Monitor Rectangle Enabling Switch IDEC
by IDEC
SKU 490208
MPN: HE6B-M211B
Availability:
10 in stock
Original price
£53.28
-
Original price
£53.28
Original price
£53.28
Inc VAT
£53.28
-
£53.28
Current price
£53.28
Inc VAT

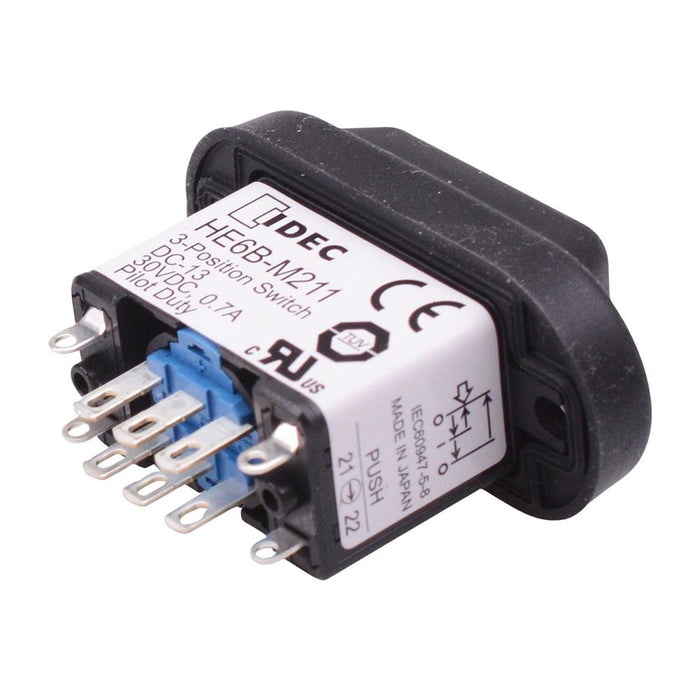

The HE6B-M211B is an ergonoically designed rectanglular enabling switch manufactured by IDEC, featuring a small package that is easy to mount. The switch features 3 positions and a high level of safety, breaking contact when the switch is squeezed or let go. The excellent reliability makes it ideal for use in robotic teaching pendants, complying to major industry regulations.
3 positions (Off-On-Off) 2 contacts DPDT Black silicone rubber boot With monitor switch Rating: 125V 0.5A, 30V 1A (250V 1.5A monitor switch) Solder terminals Degree of protection: IP65 Panel cut-out: 16.2 x 37.4mm Panel thickness: 6mm max Dimensions: 38.6 x 22 x 47.7mm (height x width x length)
Specification
| Actuation | Momentary |
| Back order lead time | 130 Days |
| Colour | Yellow |
| Contact configuration | DPDT |
| Contact rating | 0.5A 125V |
| Current rating | 0.5A |
| Electrical life | 100,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 16.2 x 29.4mm |
| Panel thickness | 6mm Max |
| Product series | HE6B |
| Protection level | IP65 |
| Switch operation | Off-On-Off |
| Terminal type | Solder |
| Voltage rating | 125V |
