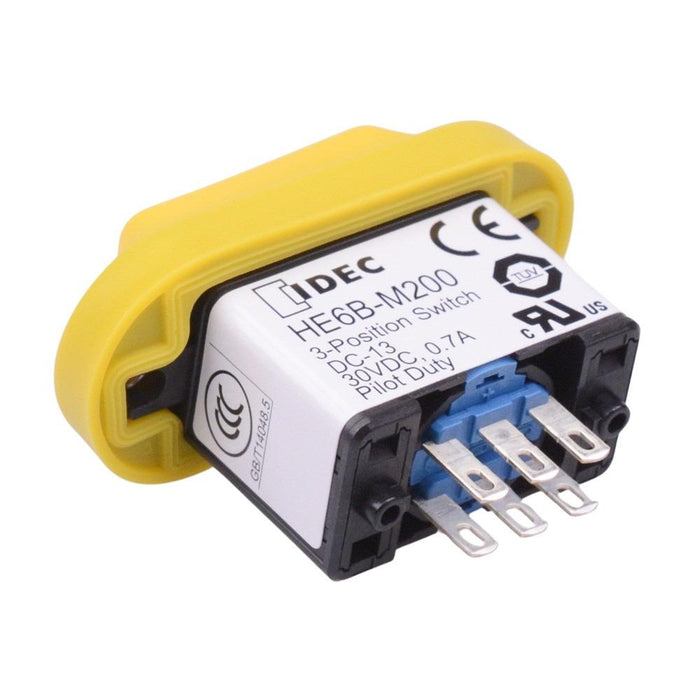

HE6B-M200Y Yellow Double 3-Position Rectangle Enabling Switch IDEC
by IDEC
SKU 490207
MPN: HE6B-M200Y
Availability:
10 in stock
Original price
£53.28
-
Original price
£53.28
Original price
£53.28
Inc VAT
£53.28
-
£53.28
Current price
£53.28
Inc VAT
The HE6B-M200Y is an ergonoically designed rectanglular enabling switch manufactured by IDEC, featuring a small package that is easy to mount. The switch features 3 positions and a high level of safety, breaking contact when the switch is squeezed or let go. The excellent reliability makes it ideal for use in robotic teaching pendants, complying to major industry regulations.
3 positions (Off-On-Off) 2 contacts DPDT Yellow silicone rubber boot Rating: 125V 0.5A, 30V 1A Solder terminals Degree of protection: IP65 Panel cut-out: 16.2 x 37.4mm Panel thickness: 6mm max Dimensions: 38.6 x 22 x 47.7mm (height x width x length)
Specification
| Actuation | Momentary |
| Back order lead time | 130 Days |
| Colour | Yellow |
| Contact configuration | DPDT |
| Contact rating | 0.5A 125V |
| Current rating | 0.5A |
| Electrical life | 100,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 16.2 x 29.4mm |
| Panel thickness | 6mm Max |
| Product series | HE6B |
| Protection level | IP65 |
| Switch operation | Off-On-Off |
| Terminal type | Solder |
| Voltage rating | 125V |
